Cincinnati LR Hydrashift Lathe 10″ to 26″ Op, Service & Parts List Manual #1559

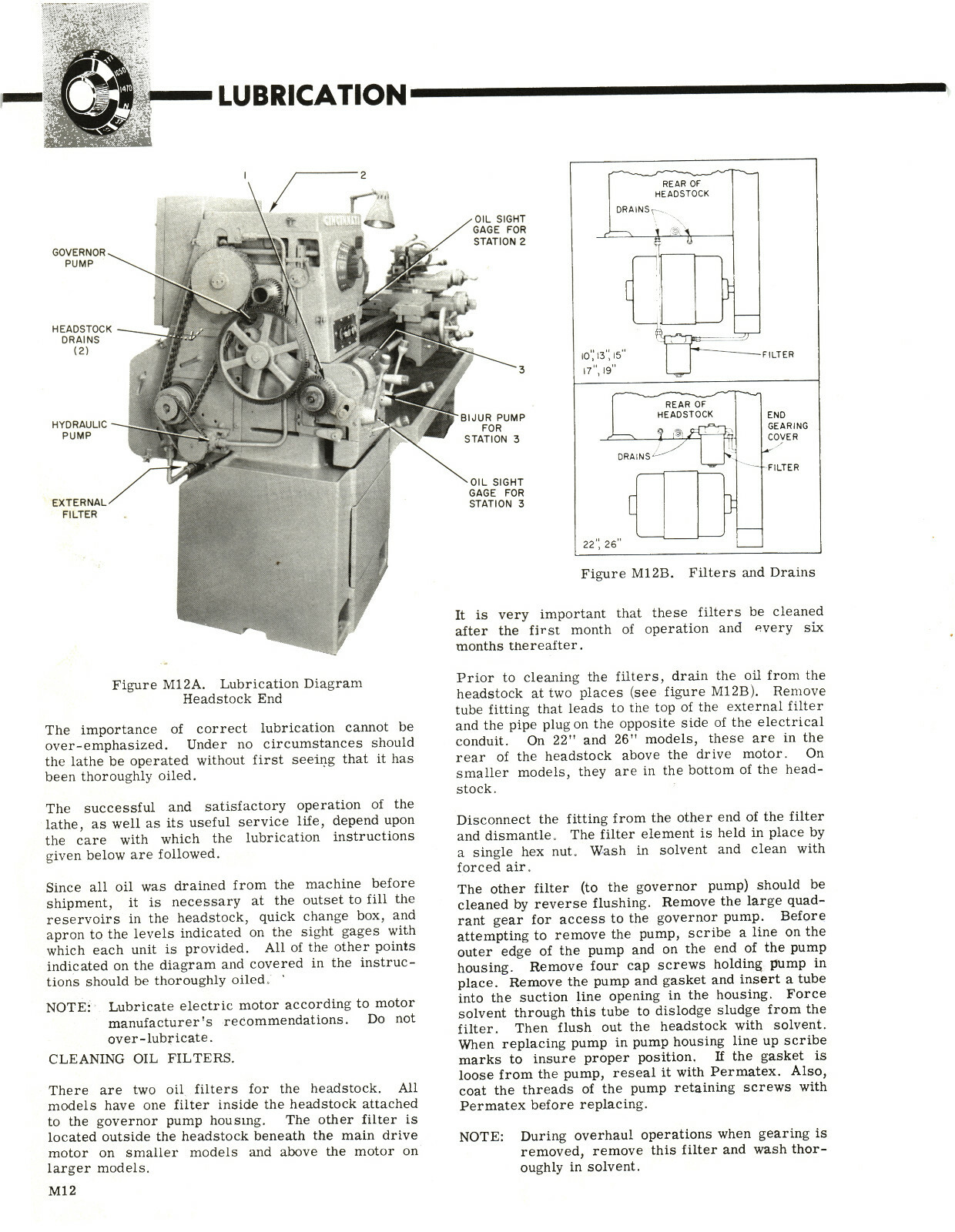

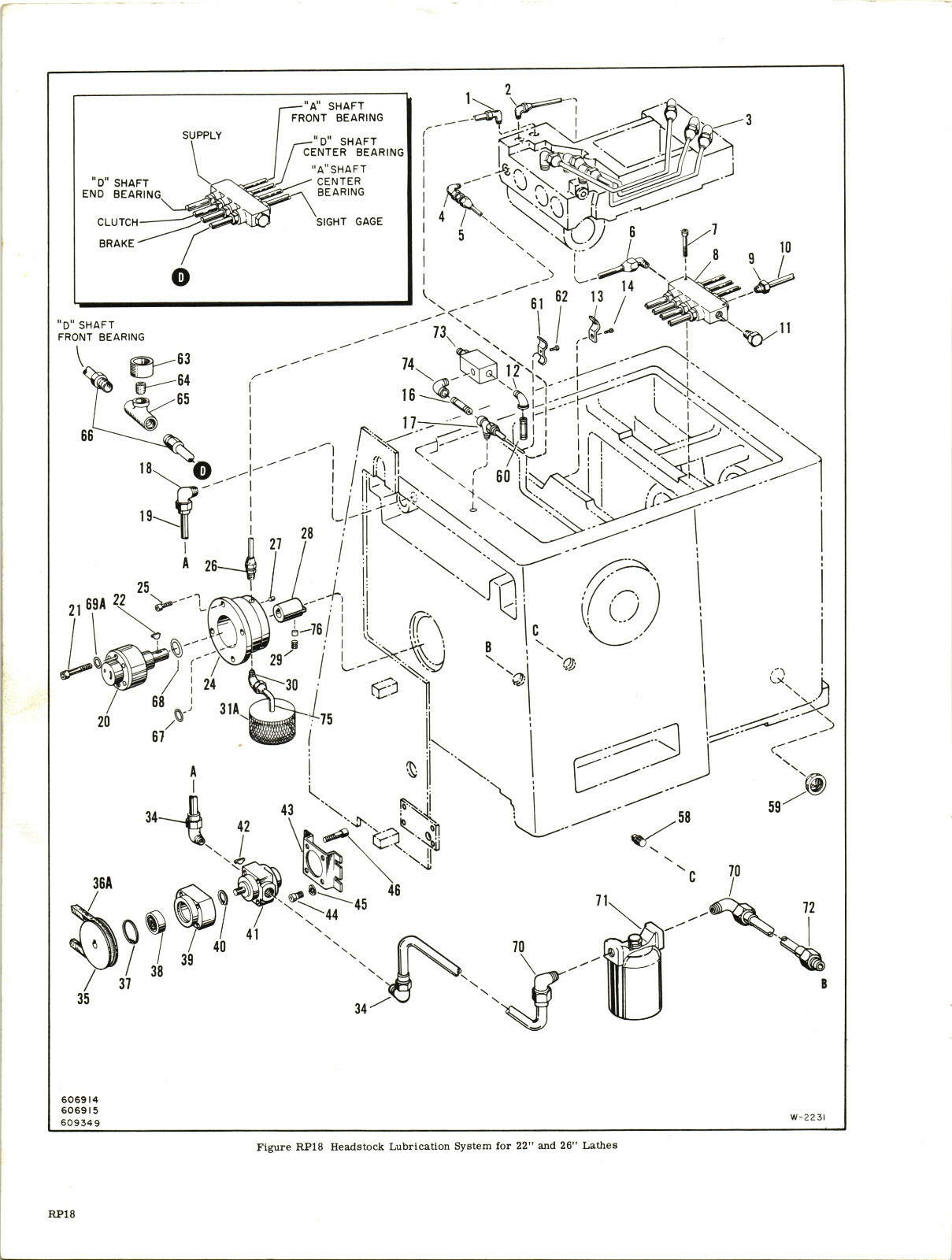

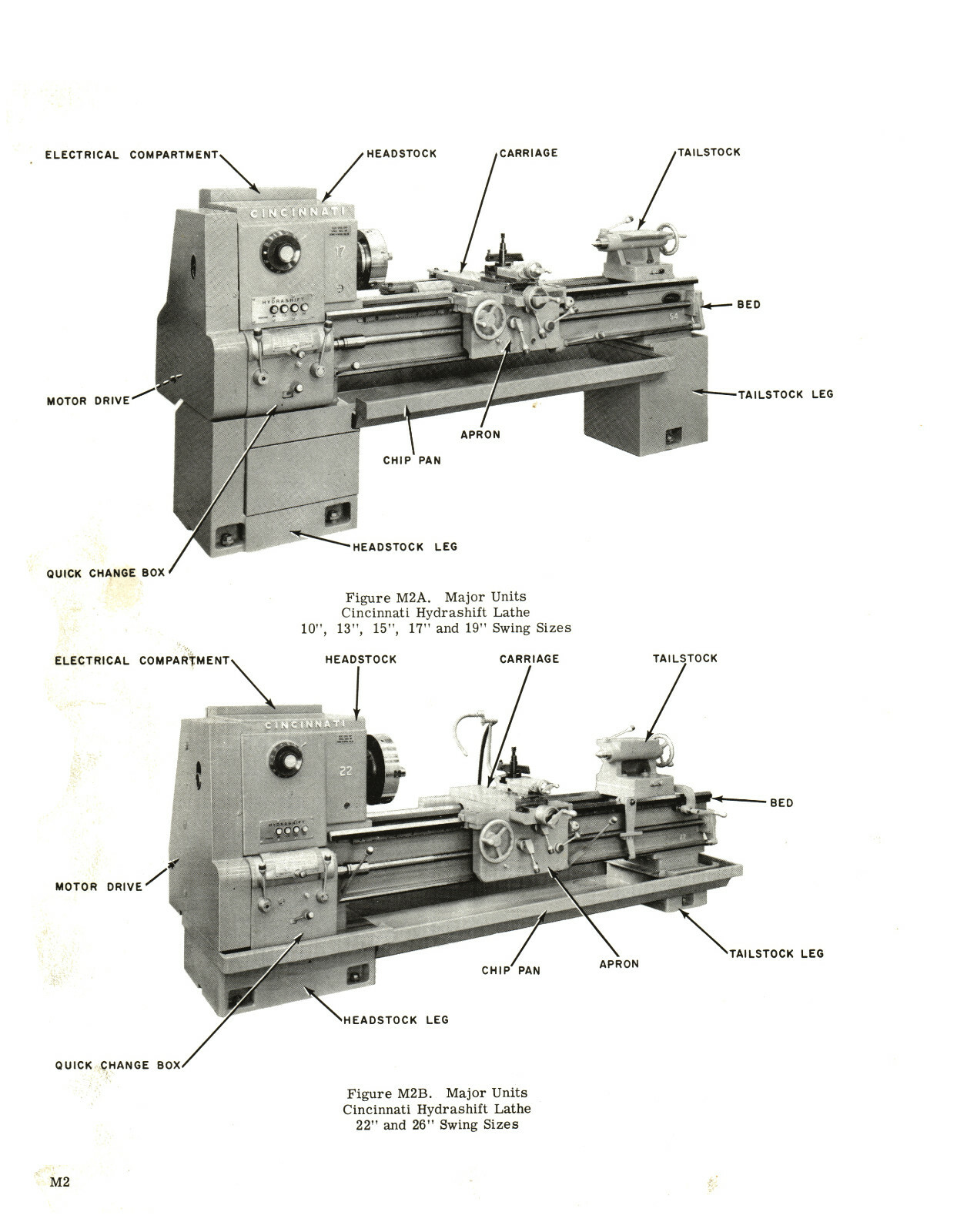

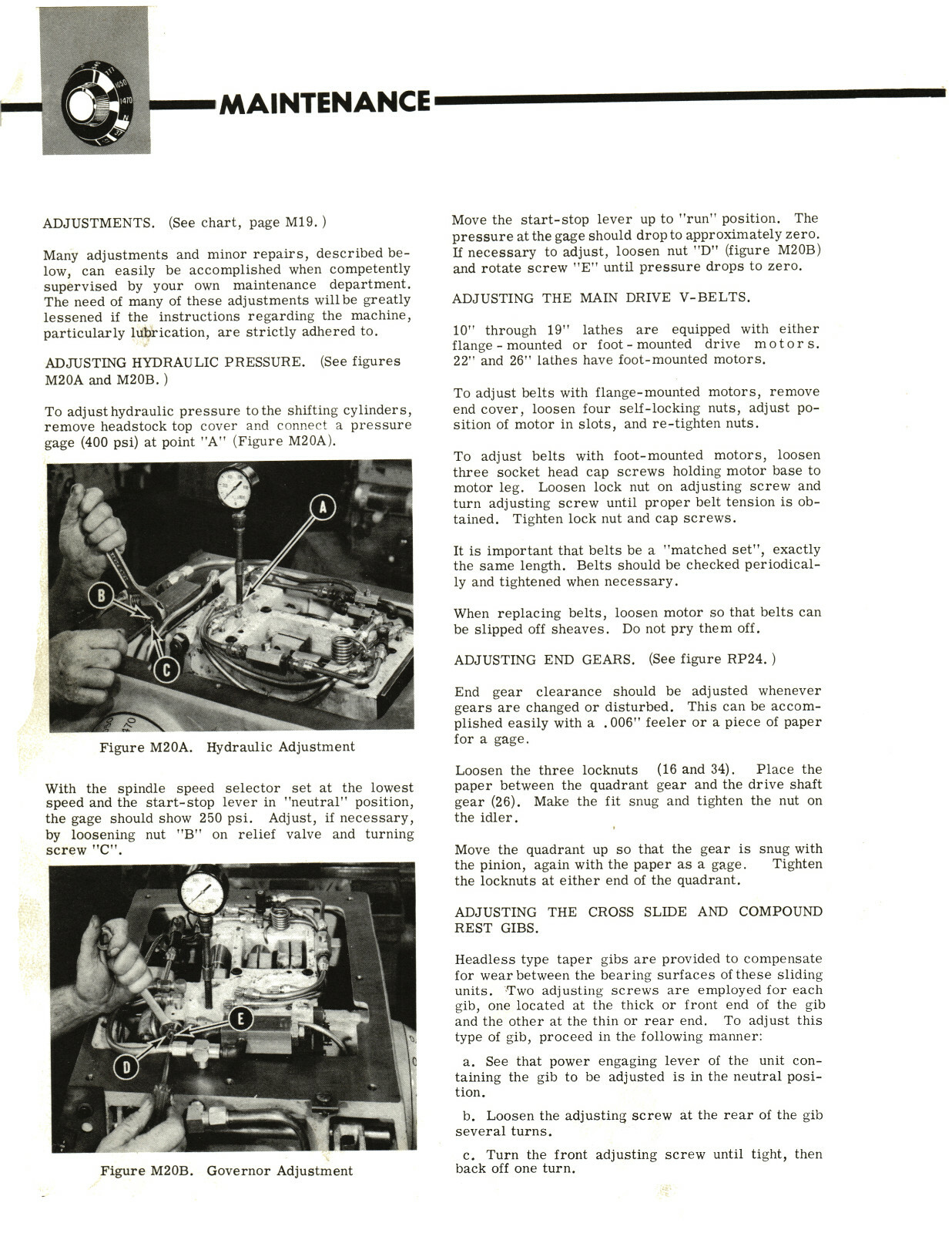

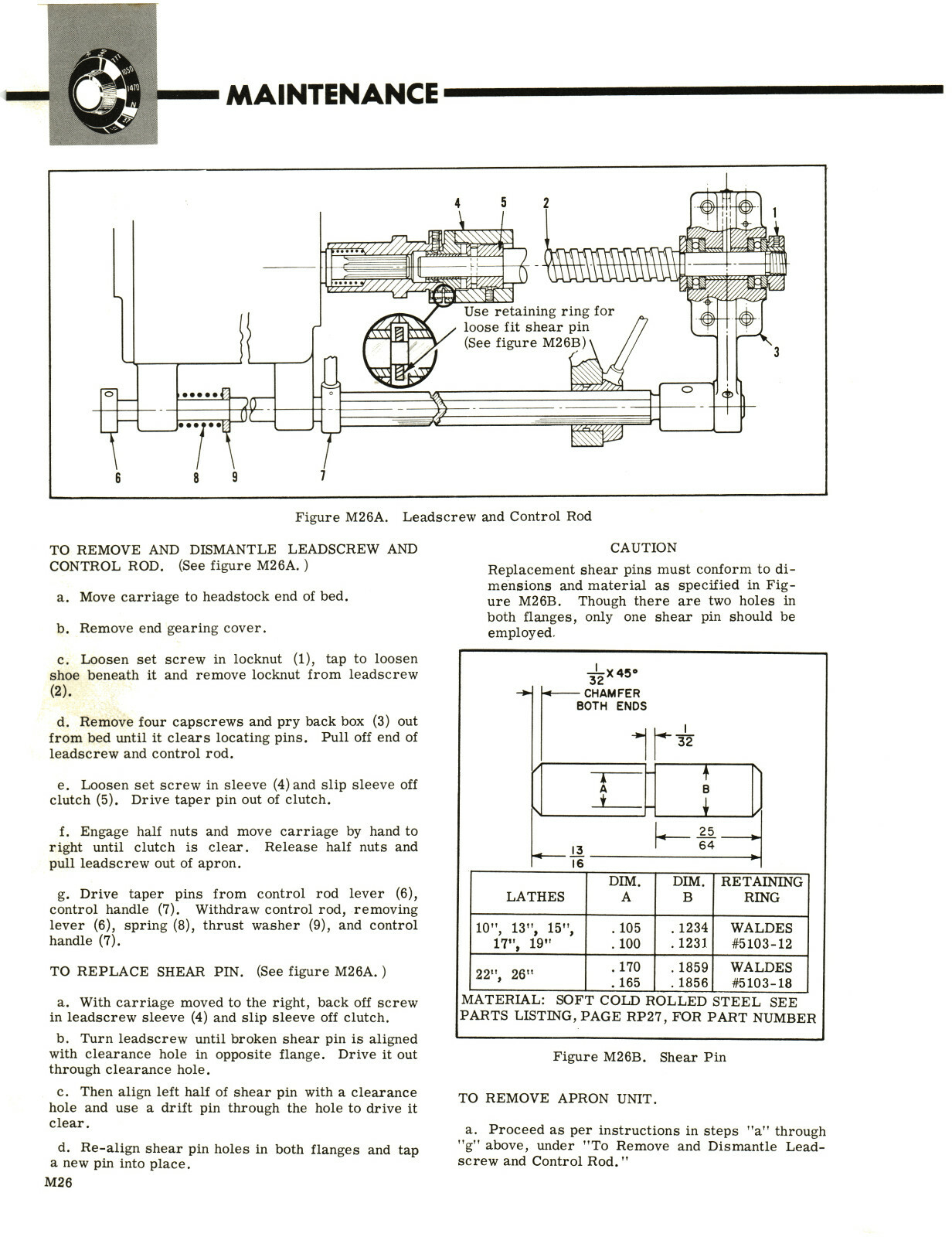

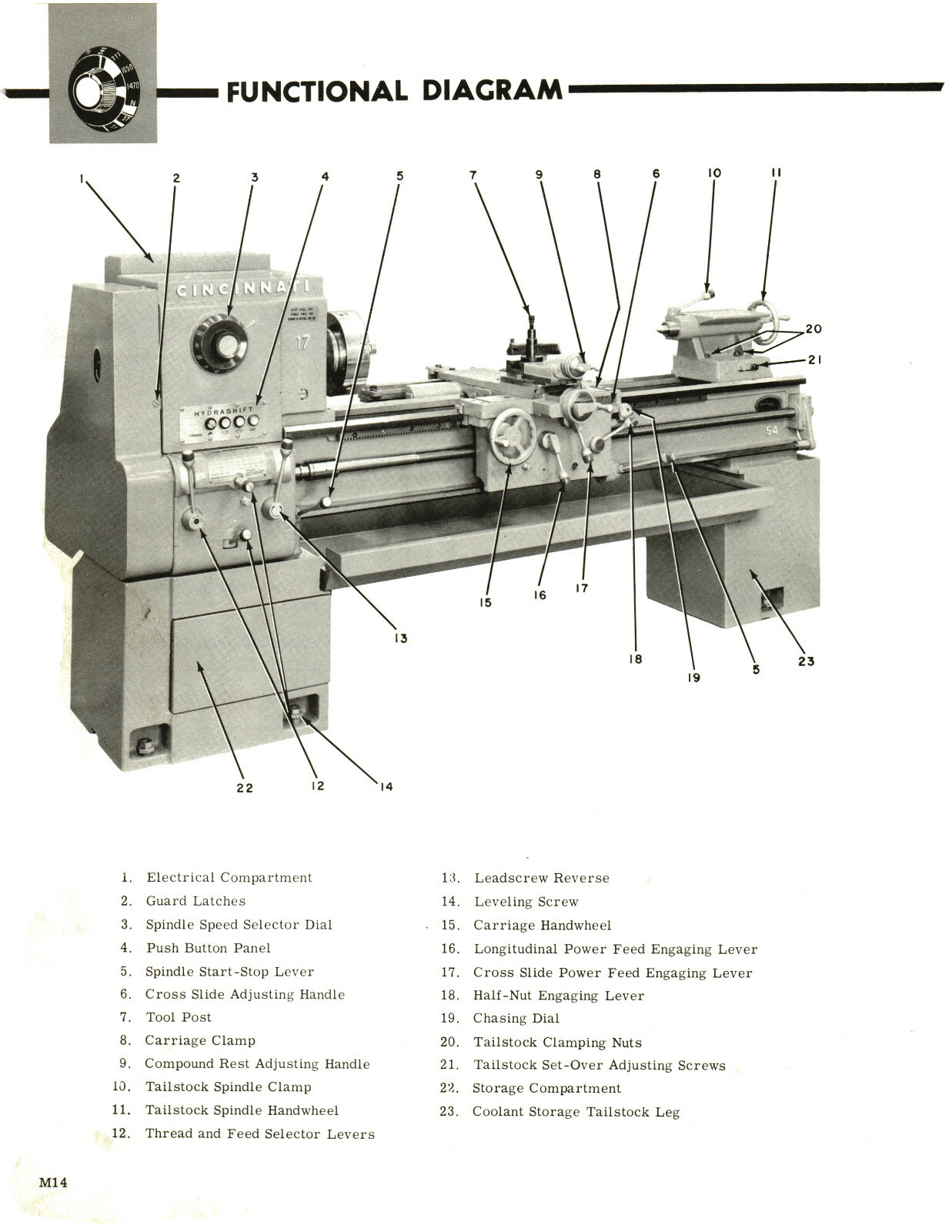

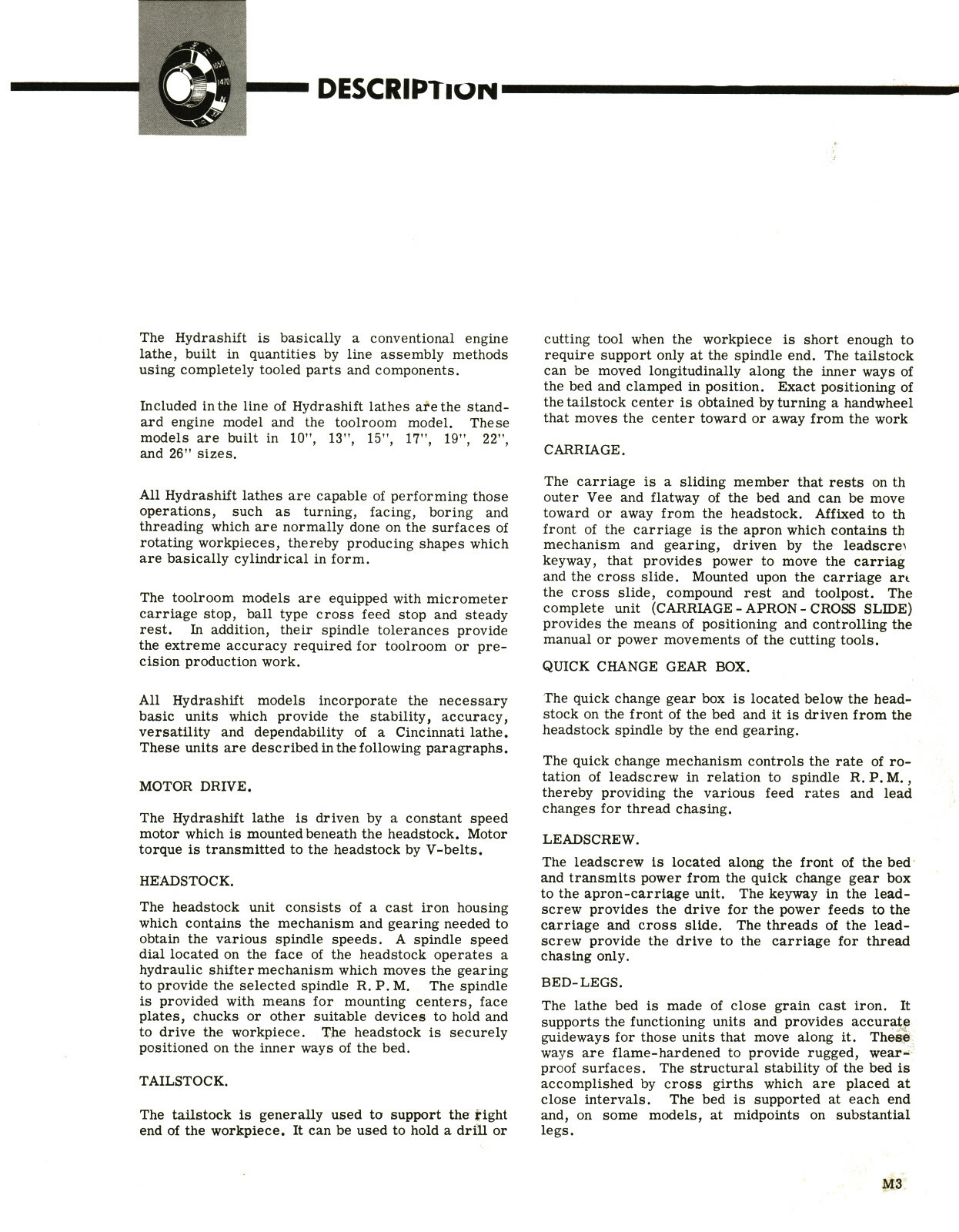

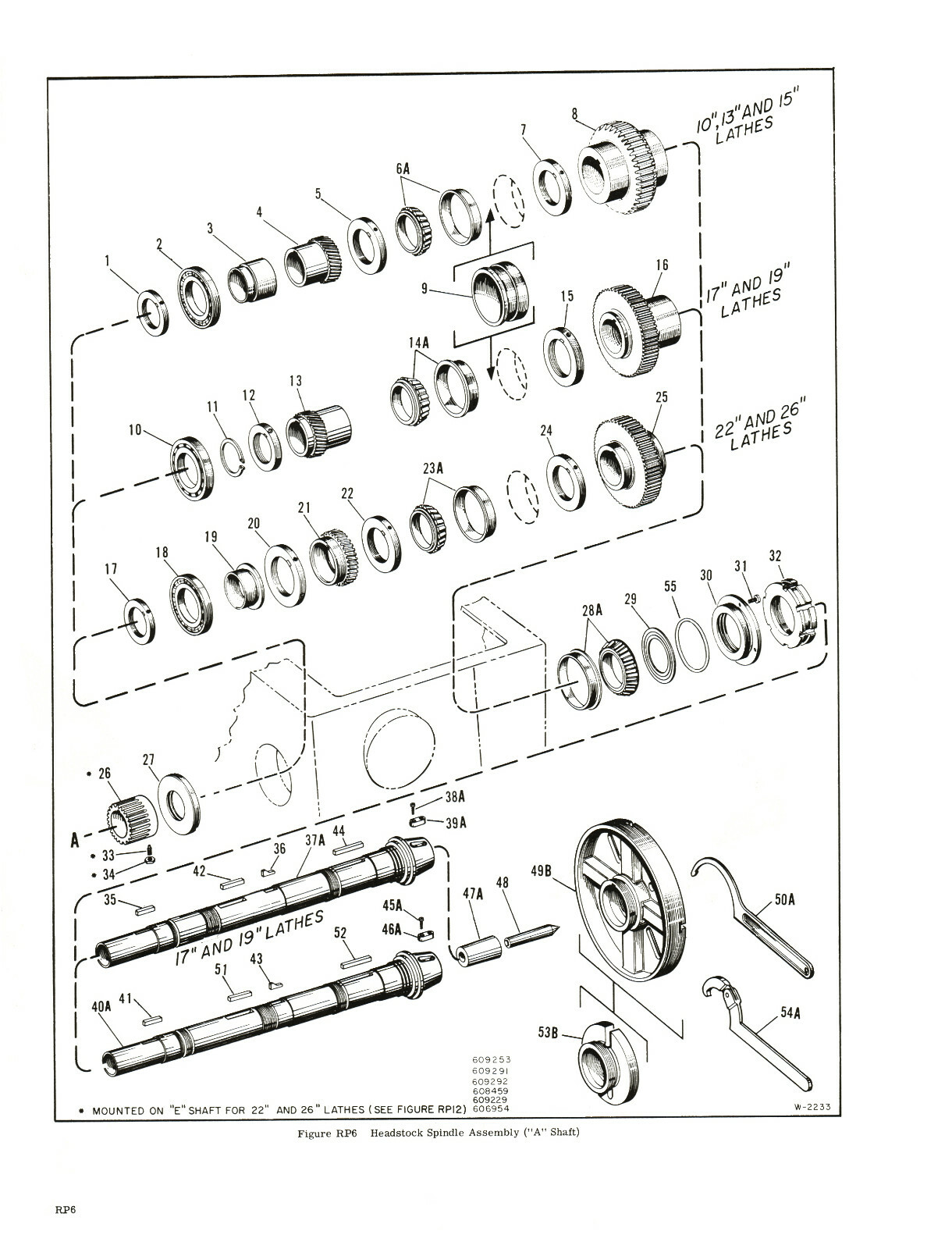

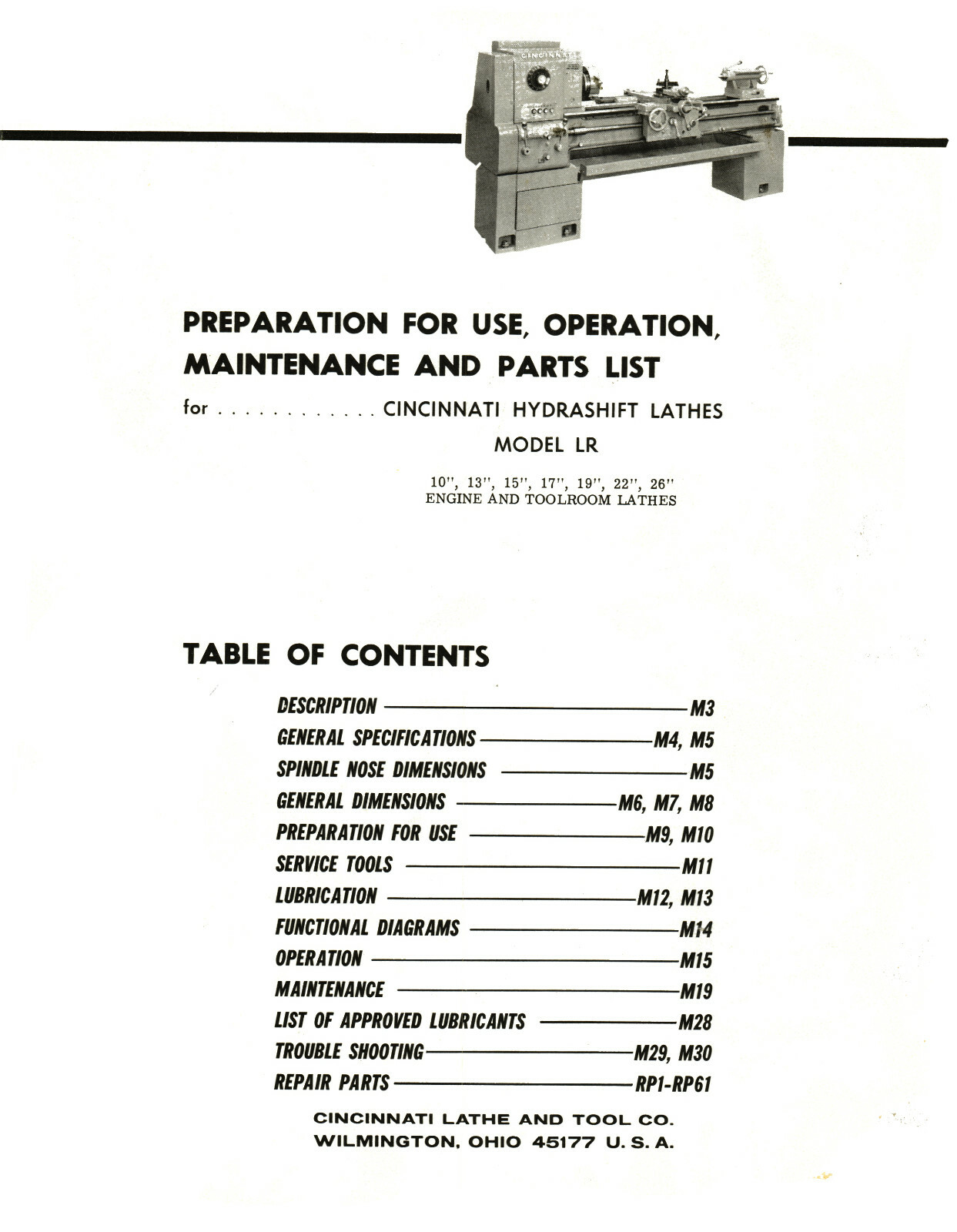

Cincinnati LR Hydrashift Lathe 10″ to 26″ Operation, Service & Parts List Manual For Models: LR, 10″, 13″, 15″, 17″, 19″, 22″, & 26″ Description: This manual covers the Description and General Specifications of the different sizes of the LR Lathe. It also covers the Installation, Lubrication, Operation, Maintenance, Adjustments, Disassembly and Reassembly, Troubleshooting Problems, and Exploded Parts Views and Parts Lists. It contains 92 pages. To view sample pages, View the Table of Contents, or to inspect the quality of the manual, click on the above gallery images to enlarge. Includes sections onDescriptionSpecificationsDimensionsPreparation for UseService ToolsLubricationOperationTaper Attachment MaintenanceAdjustmentsServicingDisassembly and Reassembly of PartsTroubleshooting ChartExploded Parts ViewsParts List Number of Pages: Approx. 92 Publication Date: Publication No.: Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales Reprinted from original manual using high quality 24 lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. See my for more manuals. Be sure to add me to your favorites list!
