Cincinnati Dial Type Horizontal Vertical Milling Machine Instruction Manual 1510

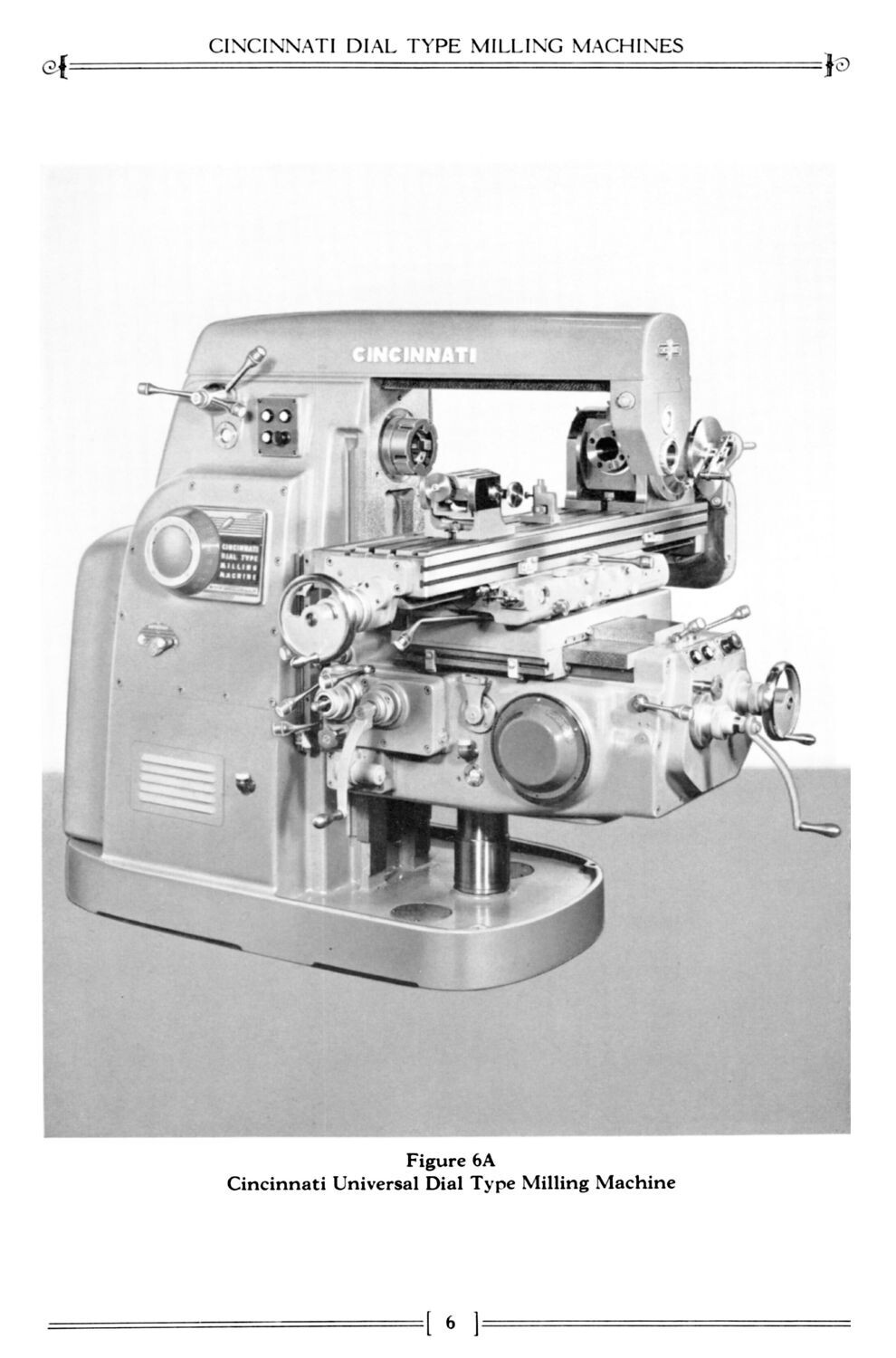

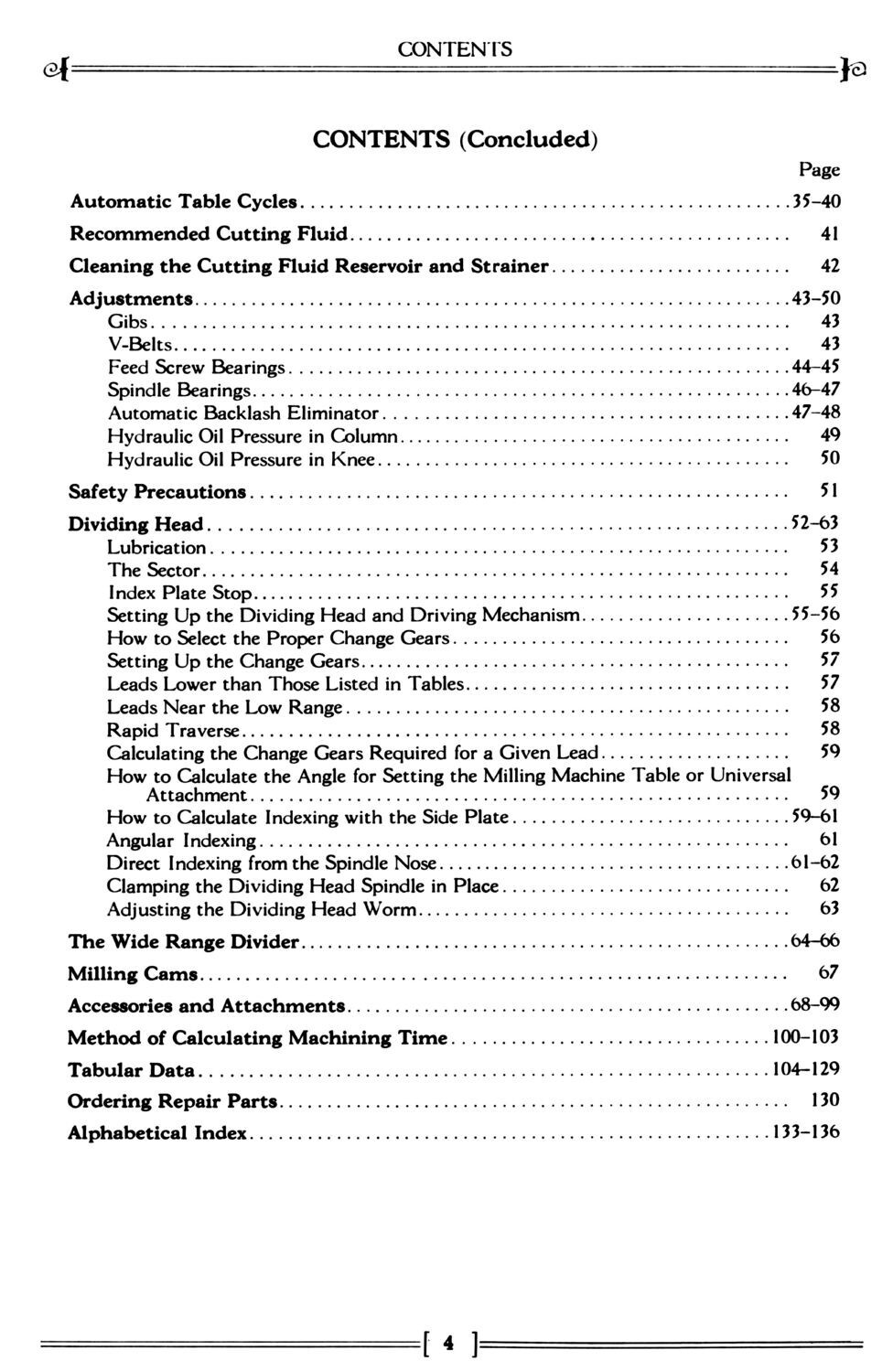

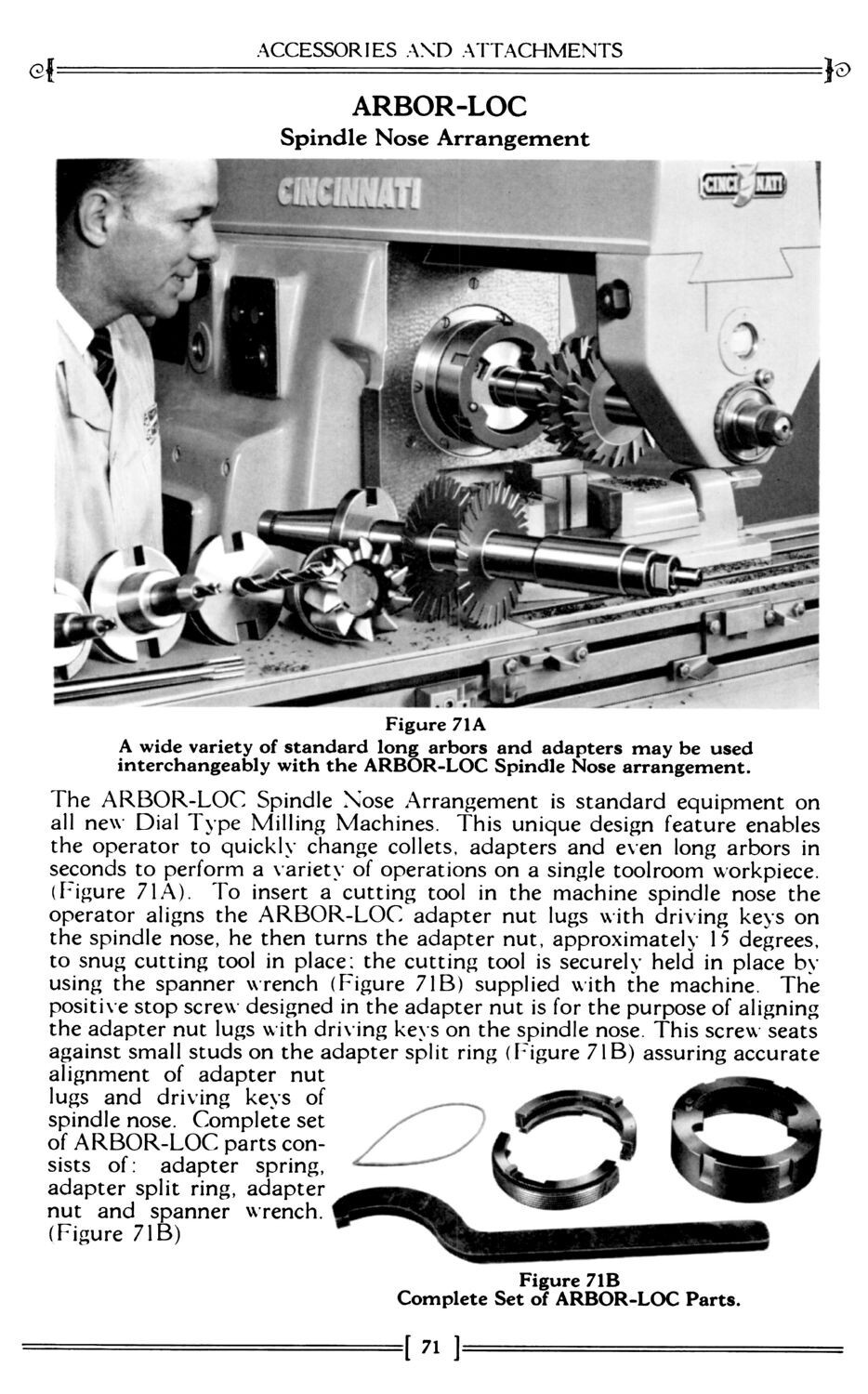

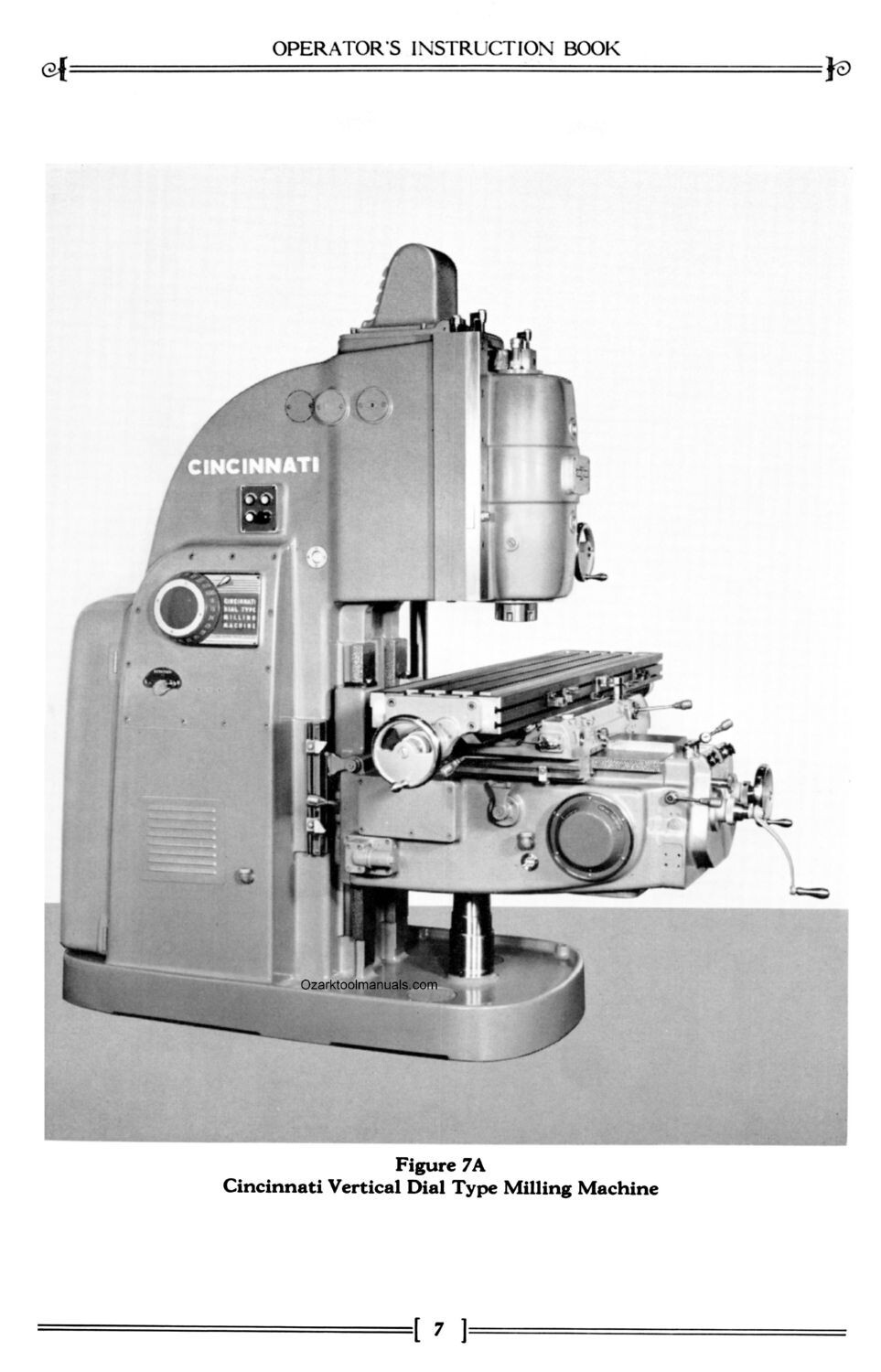

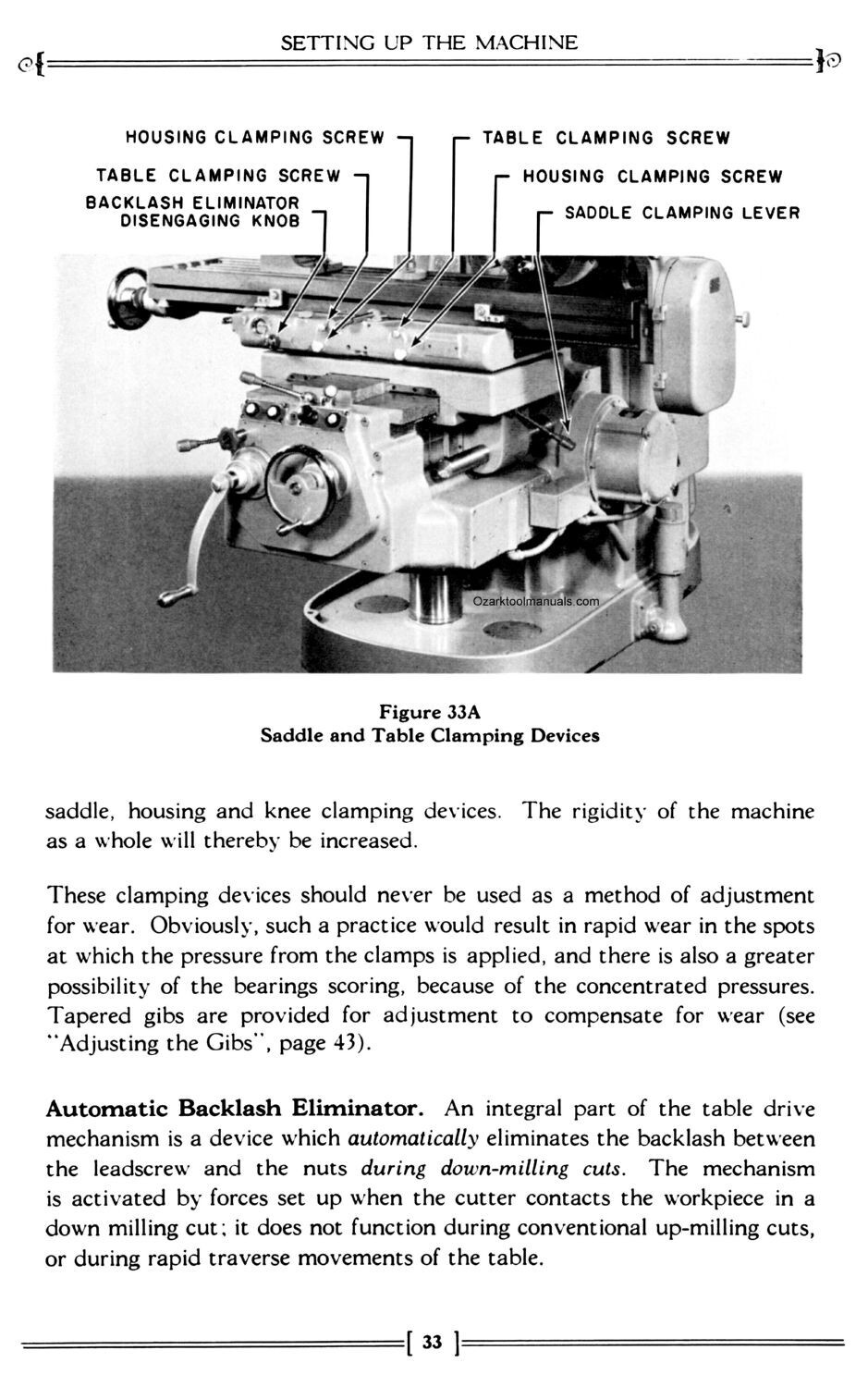

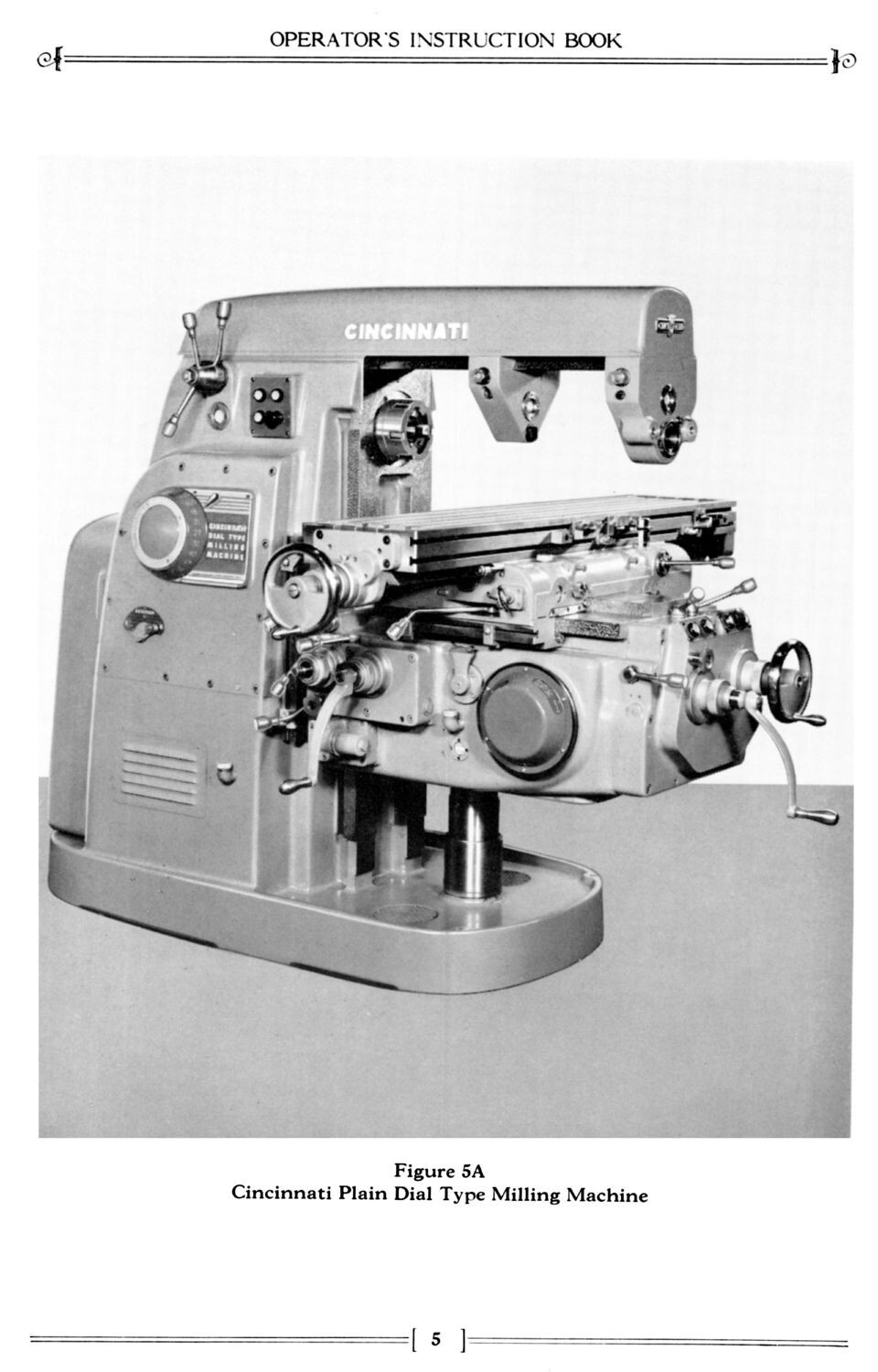

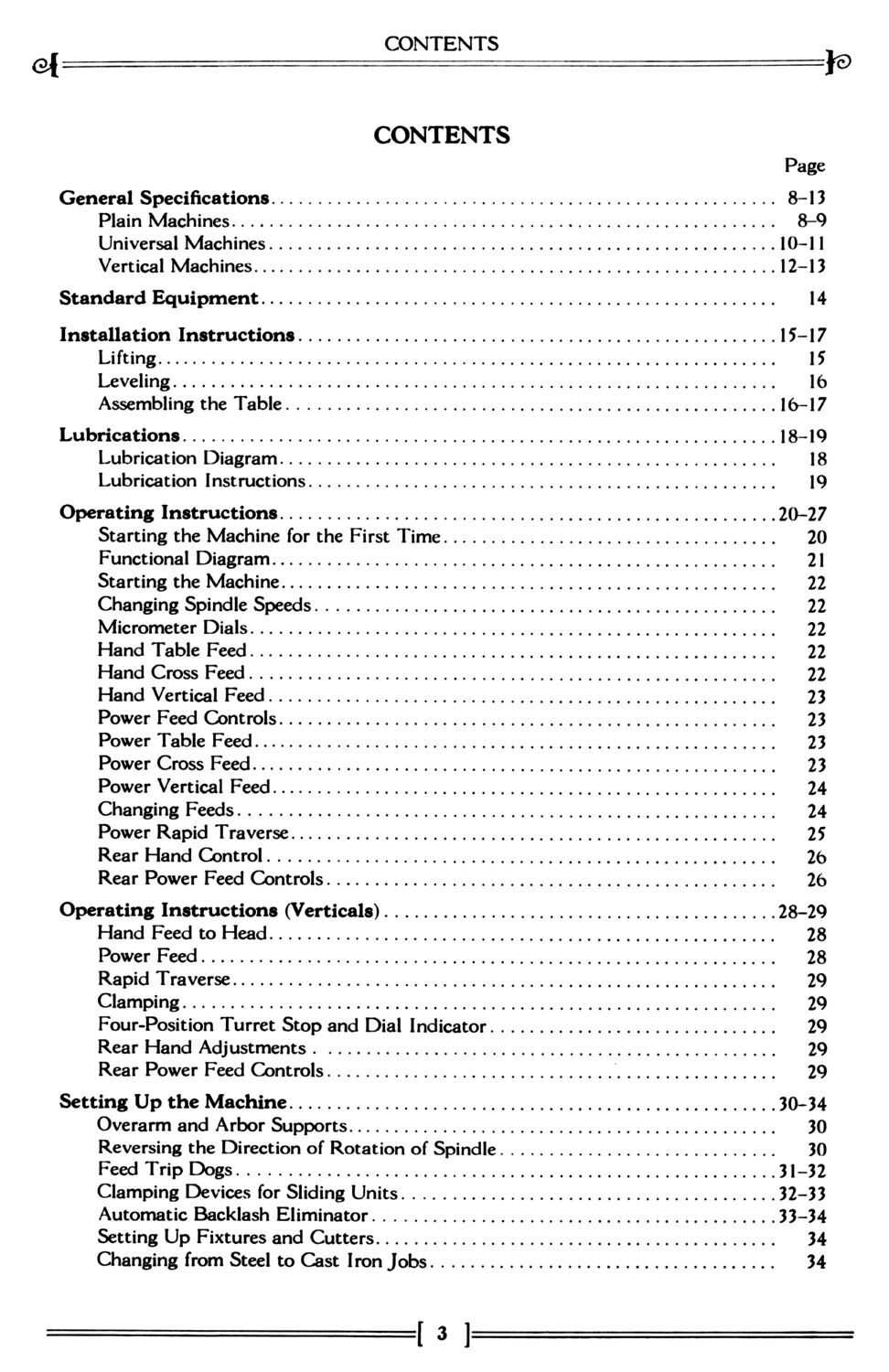

Manual Description: Number of Pages: 136 This is a reproduction, not a photocopy, of an original 1956 Cincinnati Dial Type Horizontal & Vertical Milling Machines Operator’s Instruction Manual. This manual covers the following models: 210-12, 310-12, 315-15, 415-15, 420-16, and 520-16. This manual contains the mill dimensions and installation instructions for both the plain and universal models. The manual covers all the proper operating procedures. It covers all the various handles and shows how to setup the automatic table feed cycles. The mill manual includes lubrication and maintenance instructions. It shows how to make various adjustments. For example, it shows how to adjust the spindle bearings, the backlash eliminator, and the traverse clutch. The manual coves a lot of different accessories like the dividing head, curricular milling table, vertical milling attachment, high speed universal milling attachment etc… It also shows how to install and basic operating instructions. Overview I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. Better than a pdf download. Visit our eBay Store! We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less? We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
