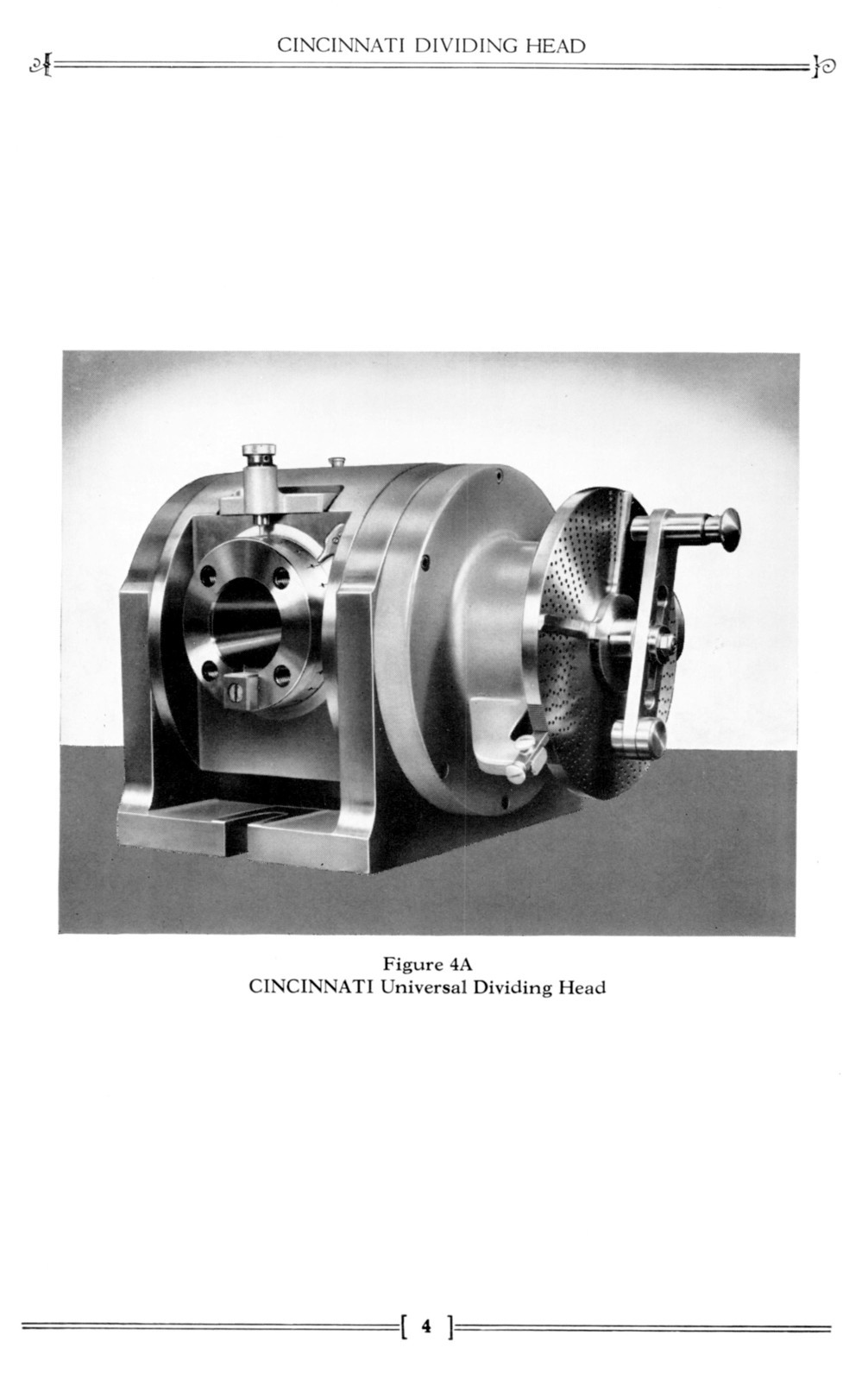

Cincinnati 8″-10″-12-14 Universal Dividing Head Operator Instruction Manual 1161

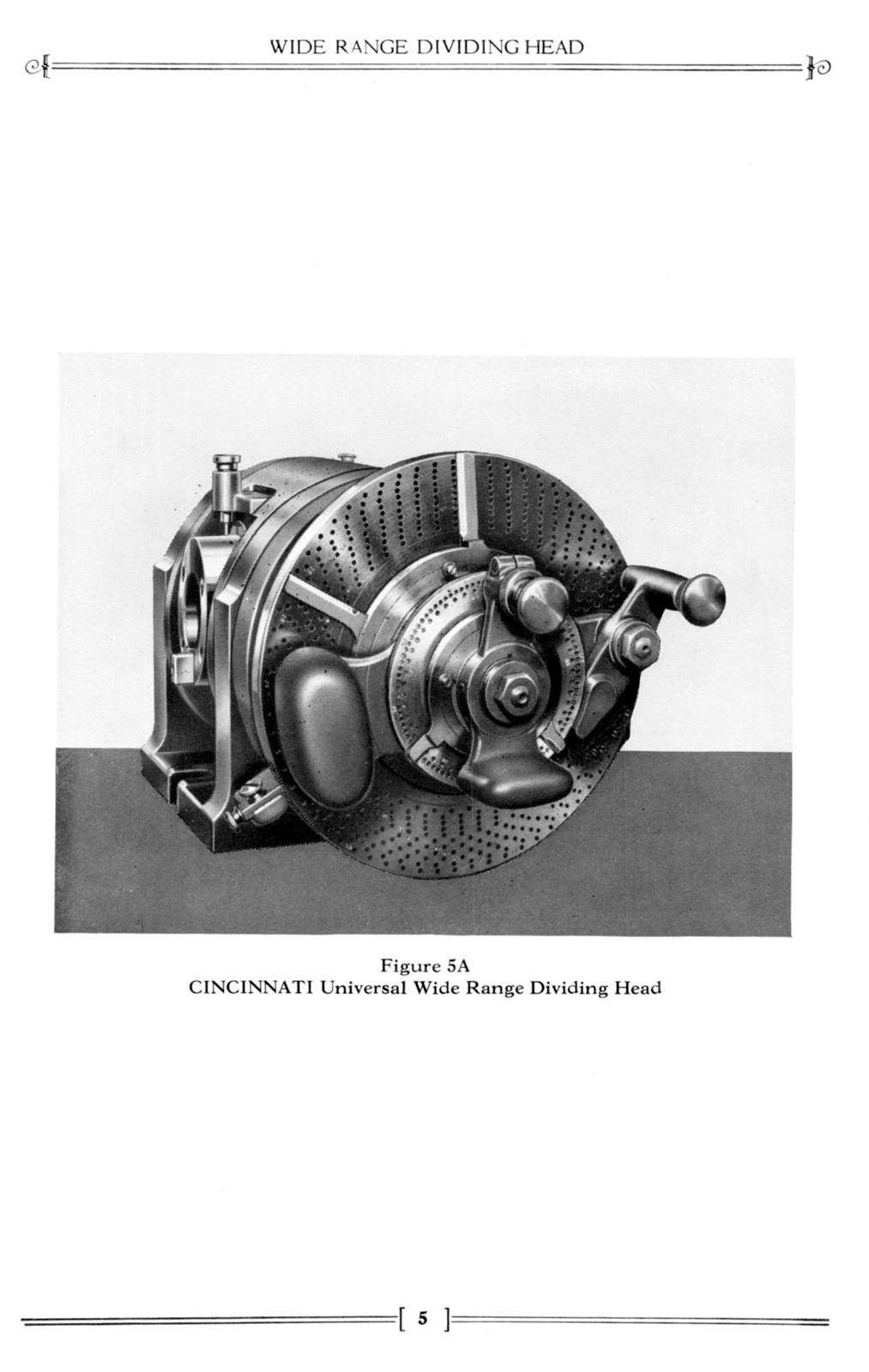

Manual Description: Number of Pages: 119 This is a reproduction, not a photocopy, of an original Cincinnati 8″-10″-12″-14″ Universal Dividing Heads Operator’s Instruction Manual. This manual gives specifications of each type of Cincinnati dividing head in detail. The Cincinnati manual contains information on how to properly lubricate and install the dividing head. This manual contains operating instructions and formulas for calculating angles. It also covers the wide range divider, which enables you to obtain divisions from 2 up to 400,000. The manual explains how to set the dividing head to mill spur gears, straight tooth bevel gears, helical gears, worm gears, and more. The dividing head manual contains information on the driving mechanisms for both open and closed types, and different accessories and attachments. It also contains index tables for these Cincinnati universal dividing heads. We have the Service and Parts manual for these Dividing Heads here: Cincinnati 10″-12″-14″ Universal Dividing Heads, Accessories, and Indexing Attachments Service & Parts Manual Cincinnati Dividing Head Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. These can be much more useful than a low resolution pdf download. Save Save Save Save Save Save Save Save Save Save Save SaveVisit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
