Cincinnati 300, 400, & 500 Model LL Milling Machine Service & Parts Manual #369

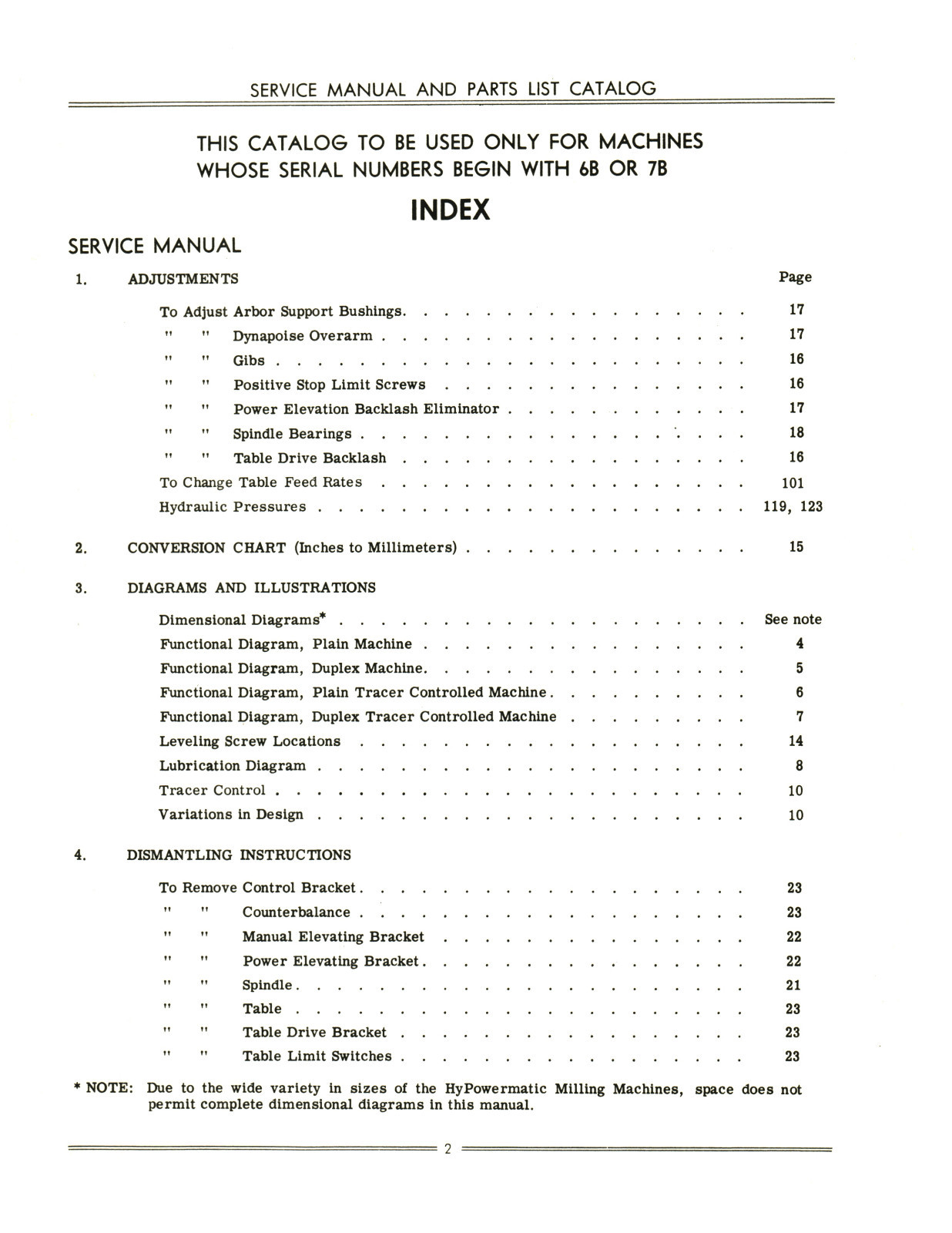

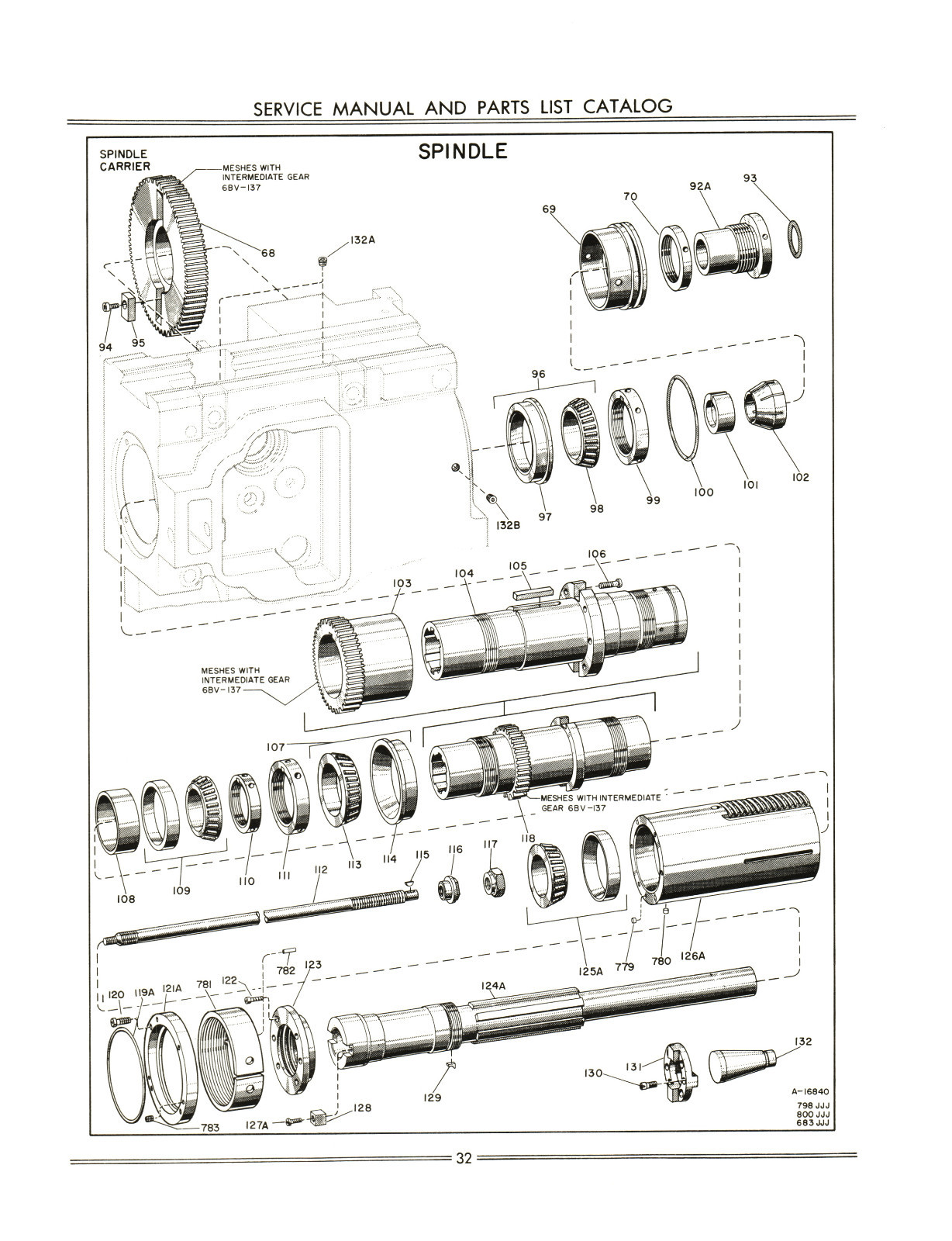

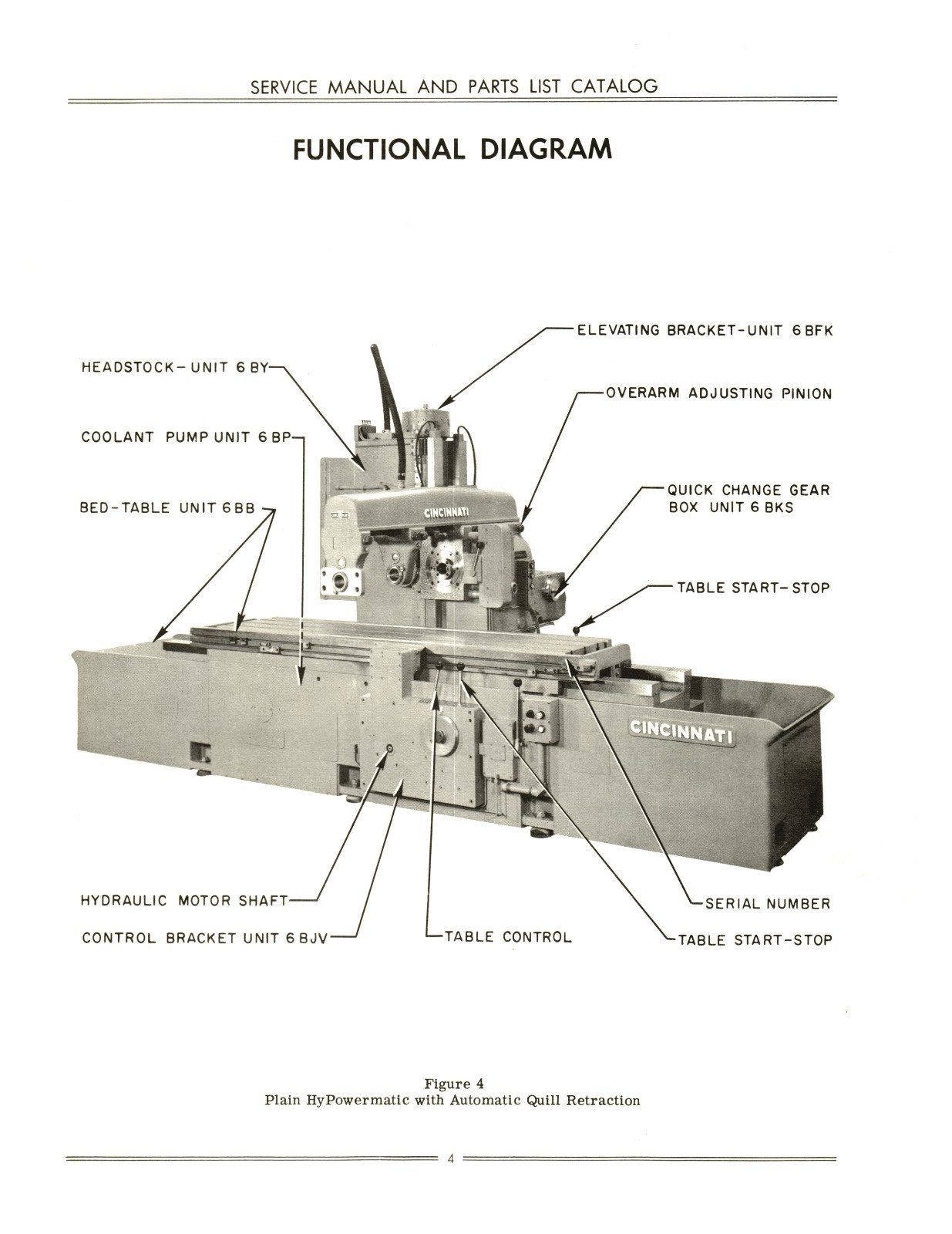

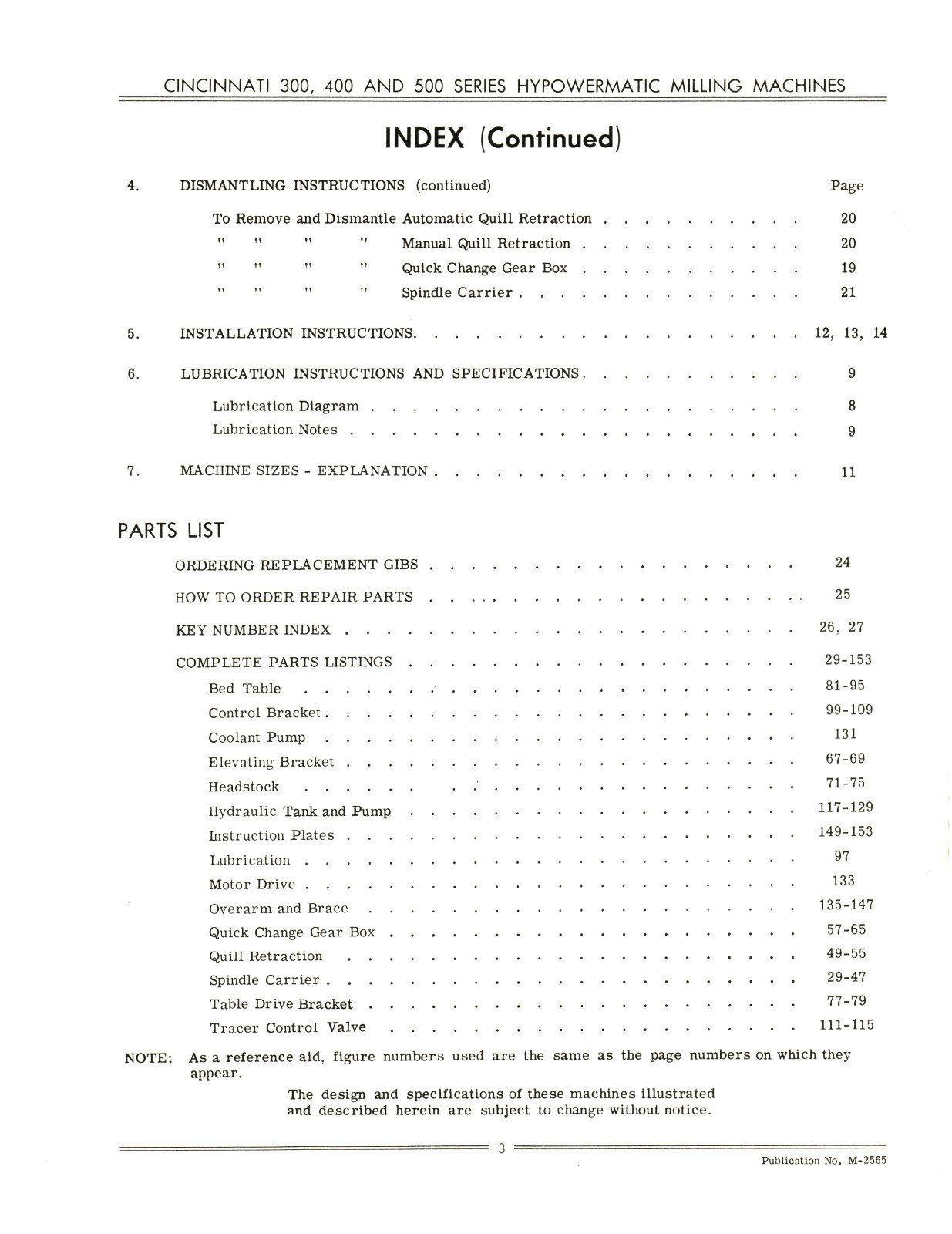

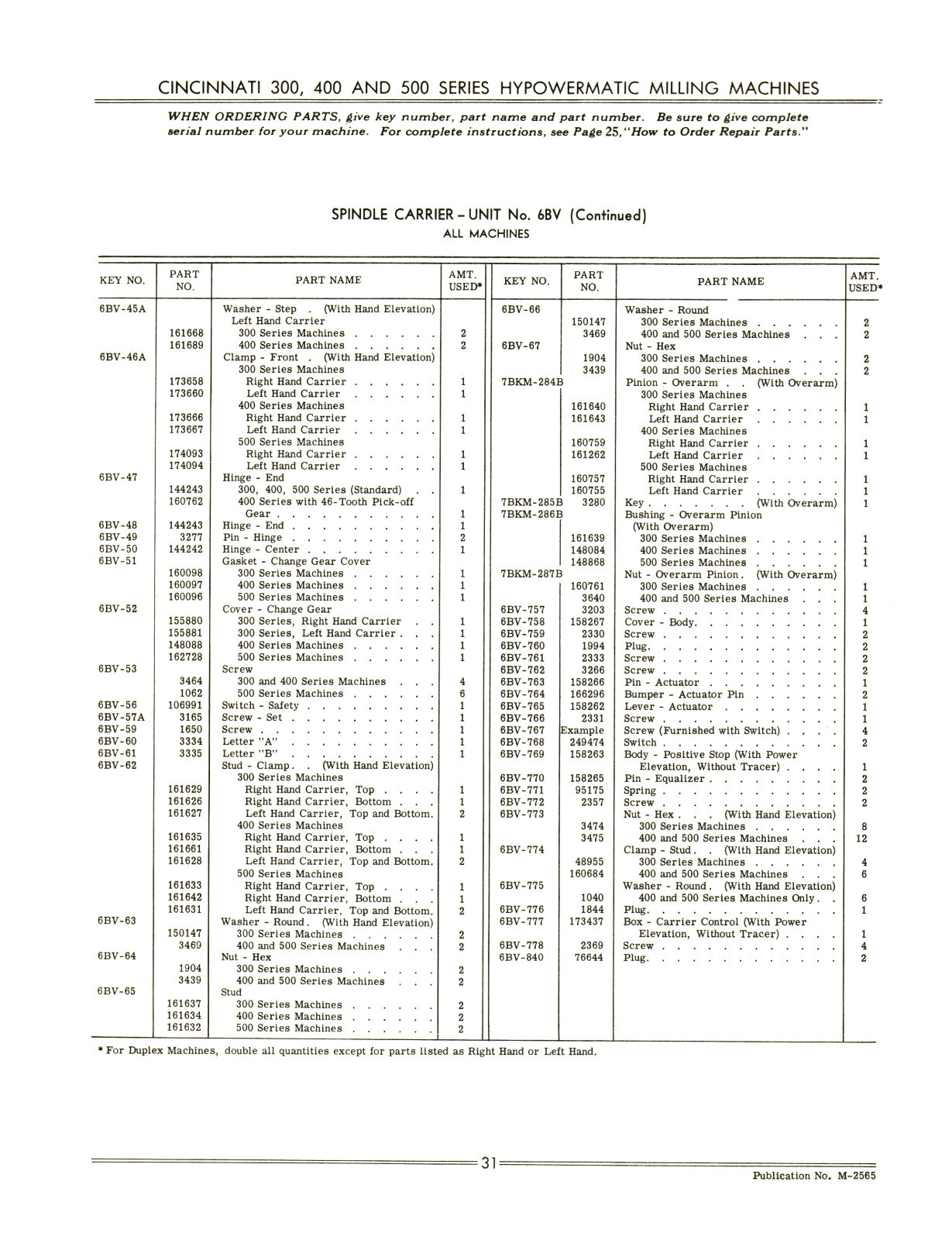

Cincinnati 300, 400, & 500 Hypowermatic Milling Machines Service and Parts List Manual For Models: 300, 400, 500 model LL Units shipped after 1959 beginning with s/n’s: 6B or 7B Description: This is a complete Service and Parts List Manual for the Cincinnati 300, 400, & 500 Hypowermatic Milling Machines, Plain, Duplex and Tracer Controlled. It covers Adjustments, Dismantling, Functional Diagrams, Installation, Parts Breakdown, and Parts List. It contains 154 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on Adjustments Functional Diagrams Plain Machine Duplex Machine Duplex Tracer Controlled Machine Lubrication Diagrams Dismantling Instructions Installation Instructions Lubrication Instructions & Specifications Parts Breakdown Diagrams Parts Lists Number of Pages: Approx. 154 Publication Date: 1964 Publication No.: M-2565 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. See my Ebay Store for more manuals. Be sure to add me to your favorites list!
