Cincinnati 12, 16″, 20″, 24″ Circular Milling Tables ARA, AYA Parts Manual #742

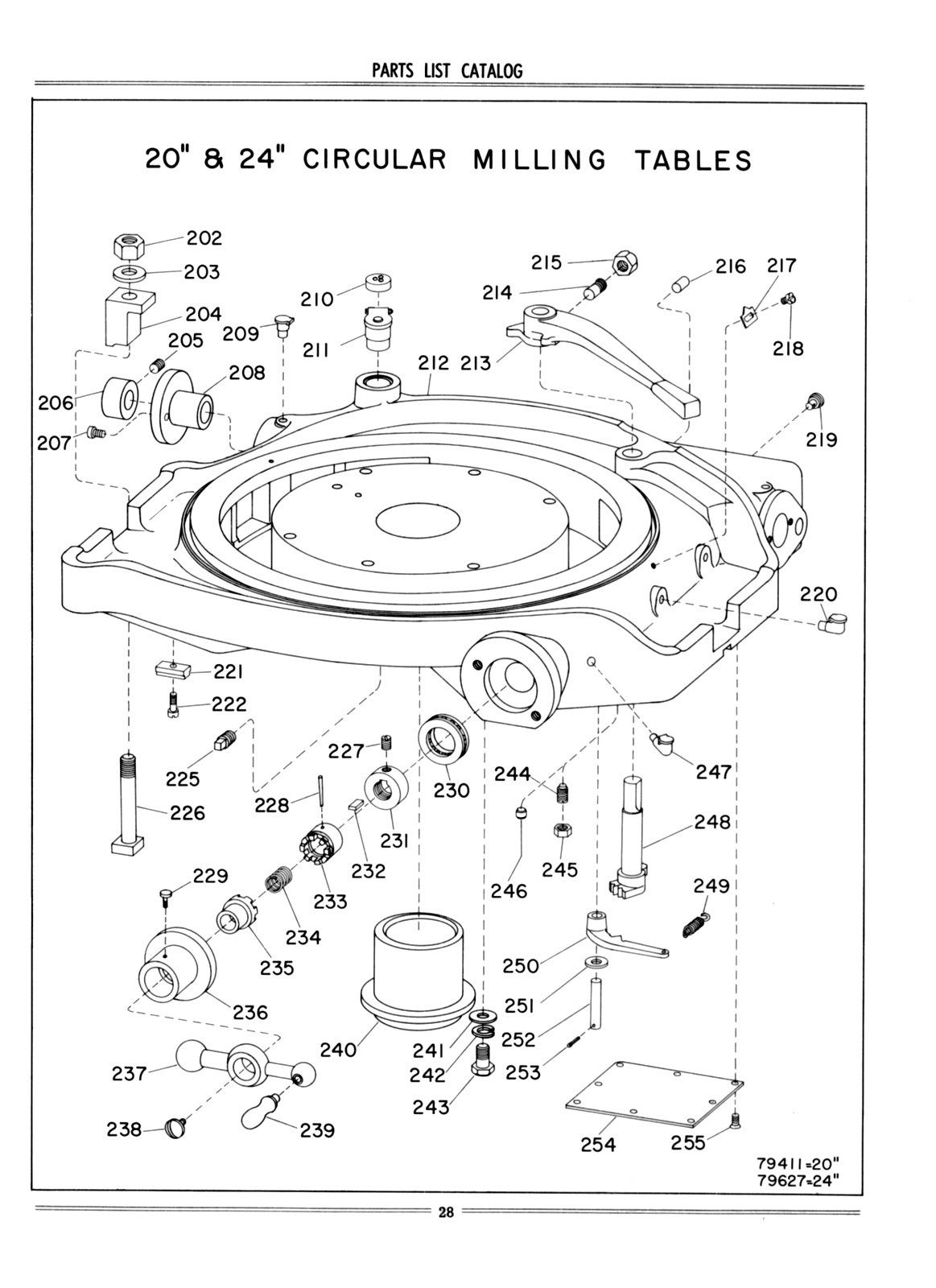

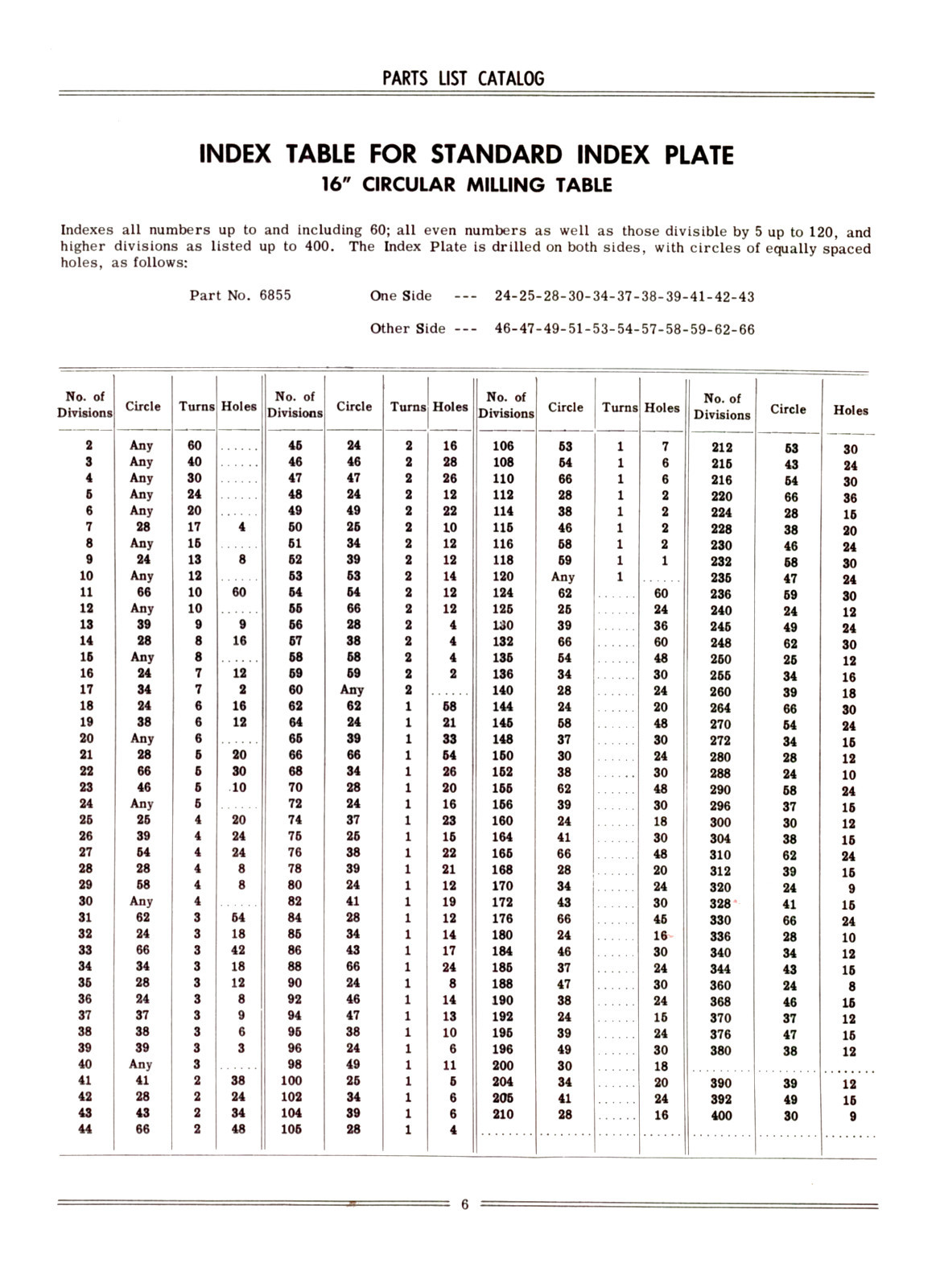

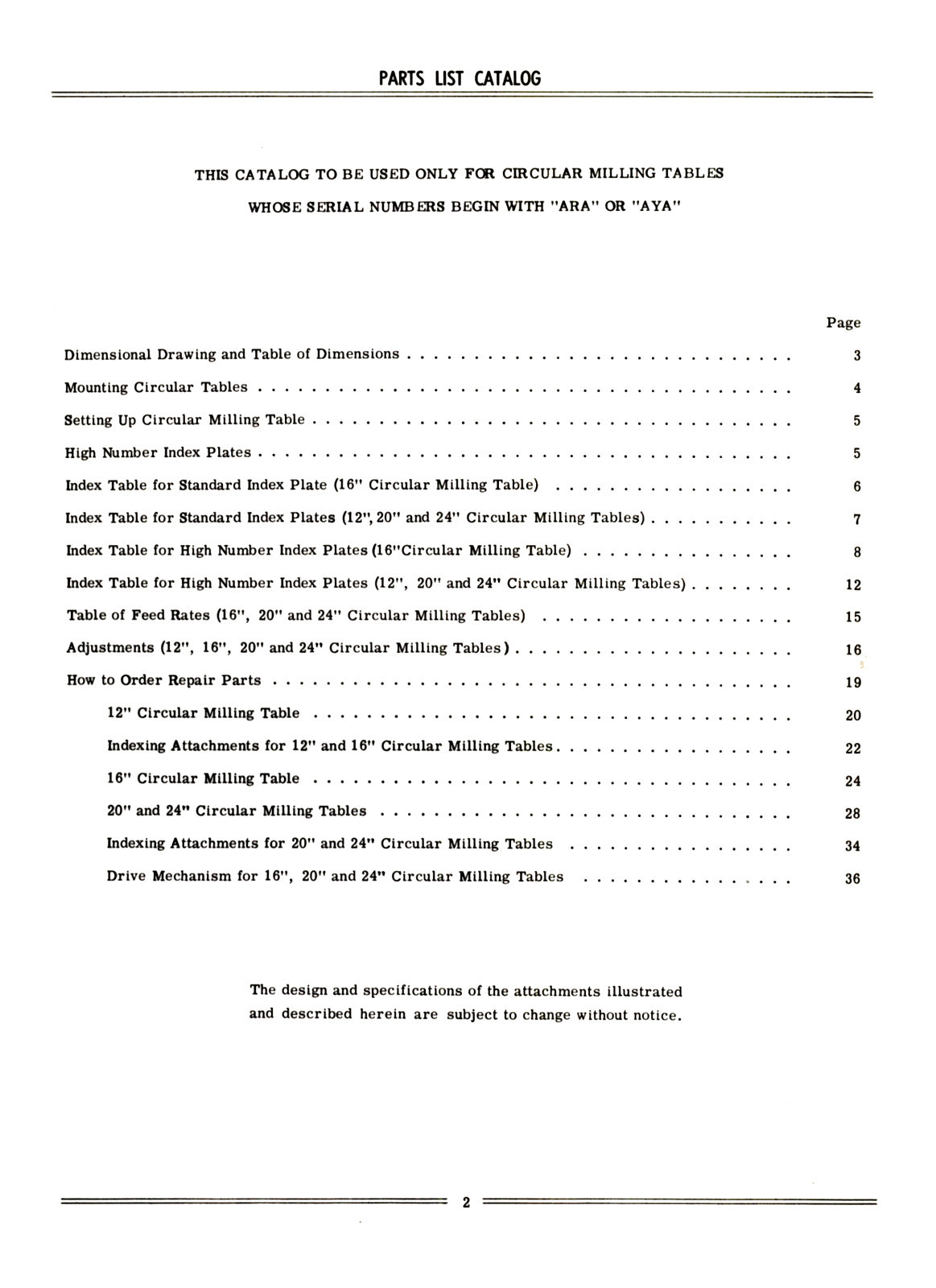

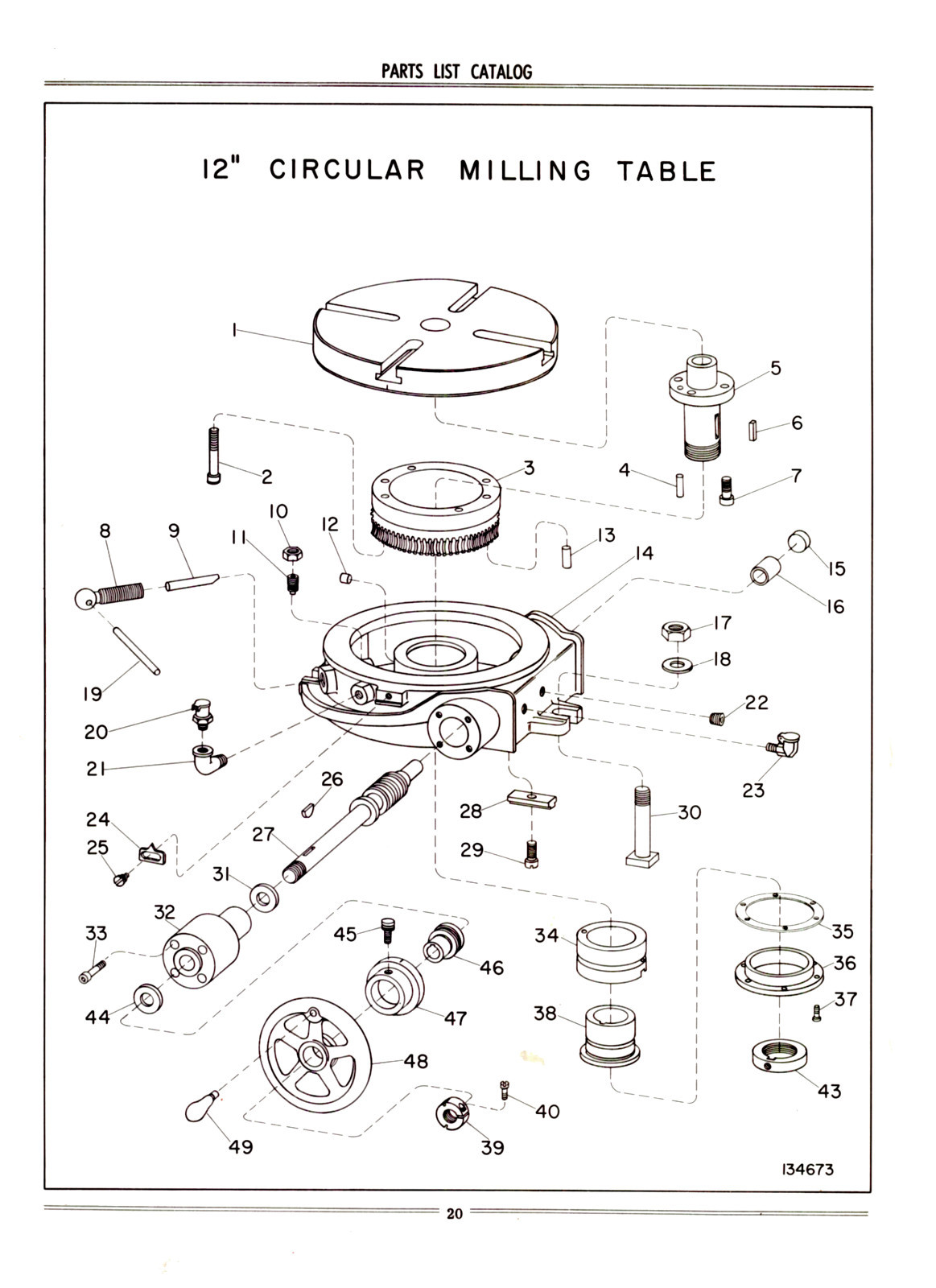

Cincinnati Circular Milling Tables Parts List Manual For models: Nos. 12″, 16″, 20″, and 24″ S/N’s starting with ARA or AYA Description: This is a Parts List Manual for the Cincinnati Circular Milling Tables Sizes 12″, 16″, 20″ & 24″. It contains information on the Specifications, How to Set Up the Circular Milling Table, Index Tables for Standard Index Plates, Index Tables for High Number Index Plates, Table of Feed Rates, Adjustments, Exploded Parts Views and Parts List. It has 49 pages. To inspect the quality of the manual, to view the Table of Contents, and to view select pages, please click on the gallery images above to enlarge. Includes sections on: Specifications How To Set Up the Circular Milling Table Dimensional Drawings Index Tables for Standard Index Plates Index Tables for High Number Index Plates Table of Feed Rates Adjustments Exploded Parts Views Parts List Number of pages: Approx 49 Condition of original: Very Good Publication date: N/A Publication No.: M-2341 Added Notes: Due to others making copies of these manuals for resale, I have lightly watermarked select pages to discourage this practice. About This Manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. Sales tax charged for Kansas sales. See my for more manuals
