BROWN & SHARPE Screw Machine Troubleshooting Guide Manual Ultramatic 00 G 2 0786

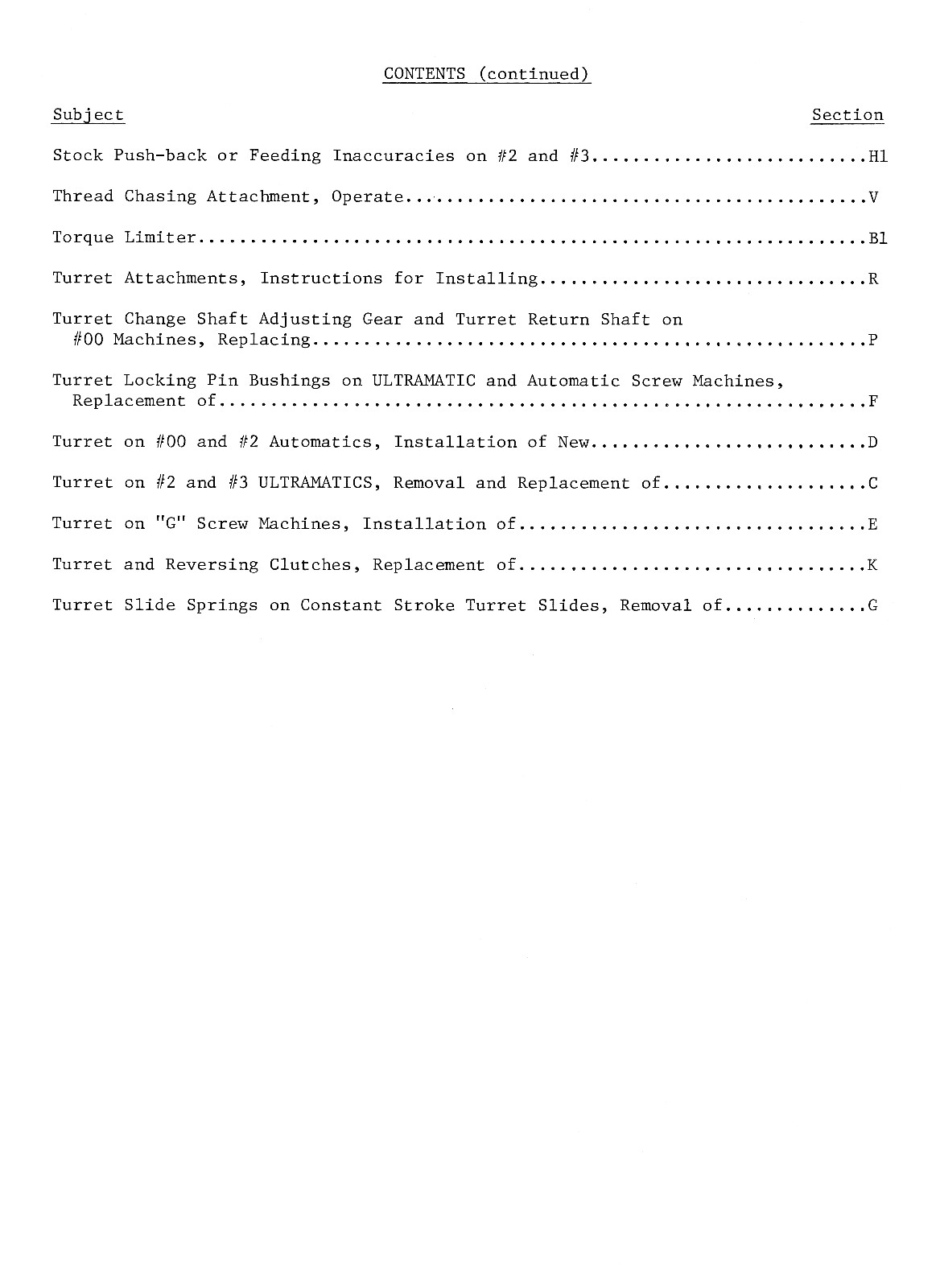

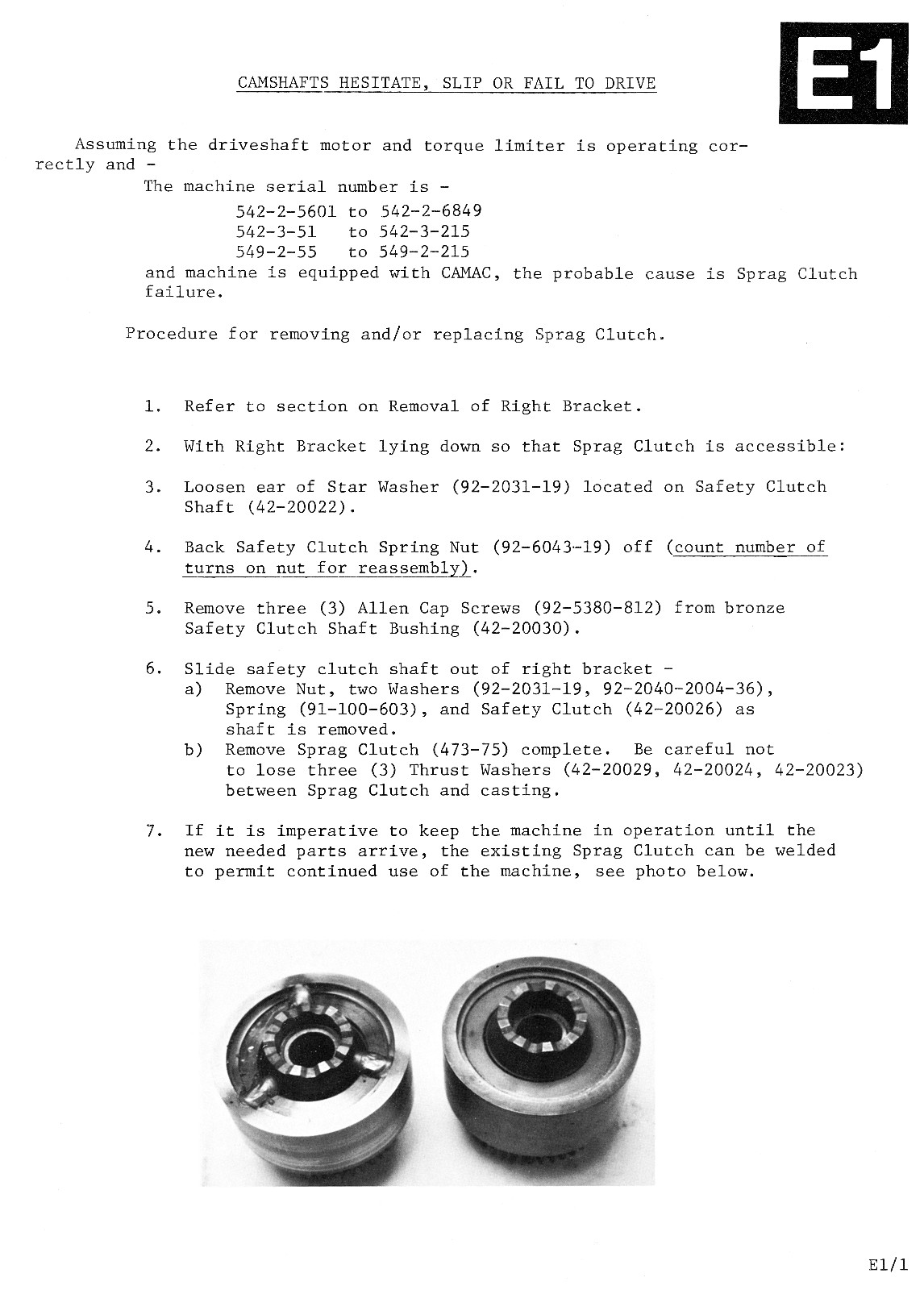

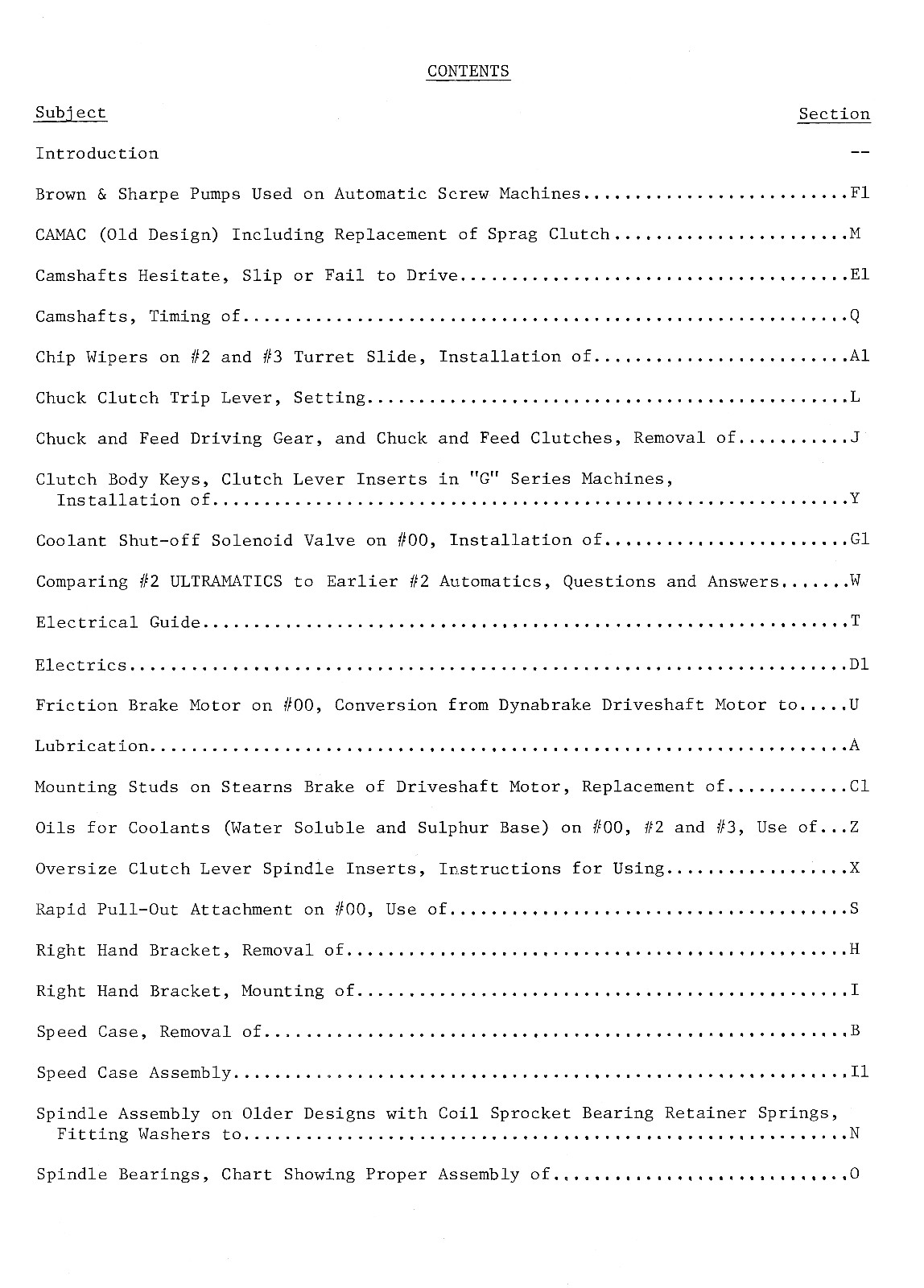

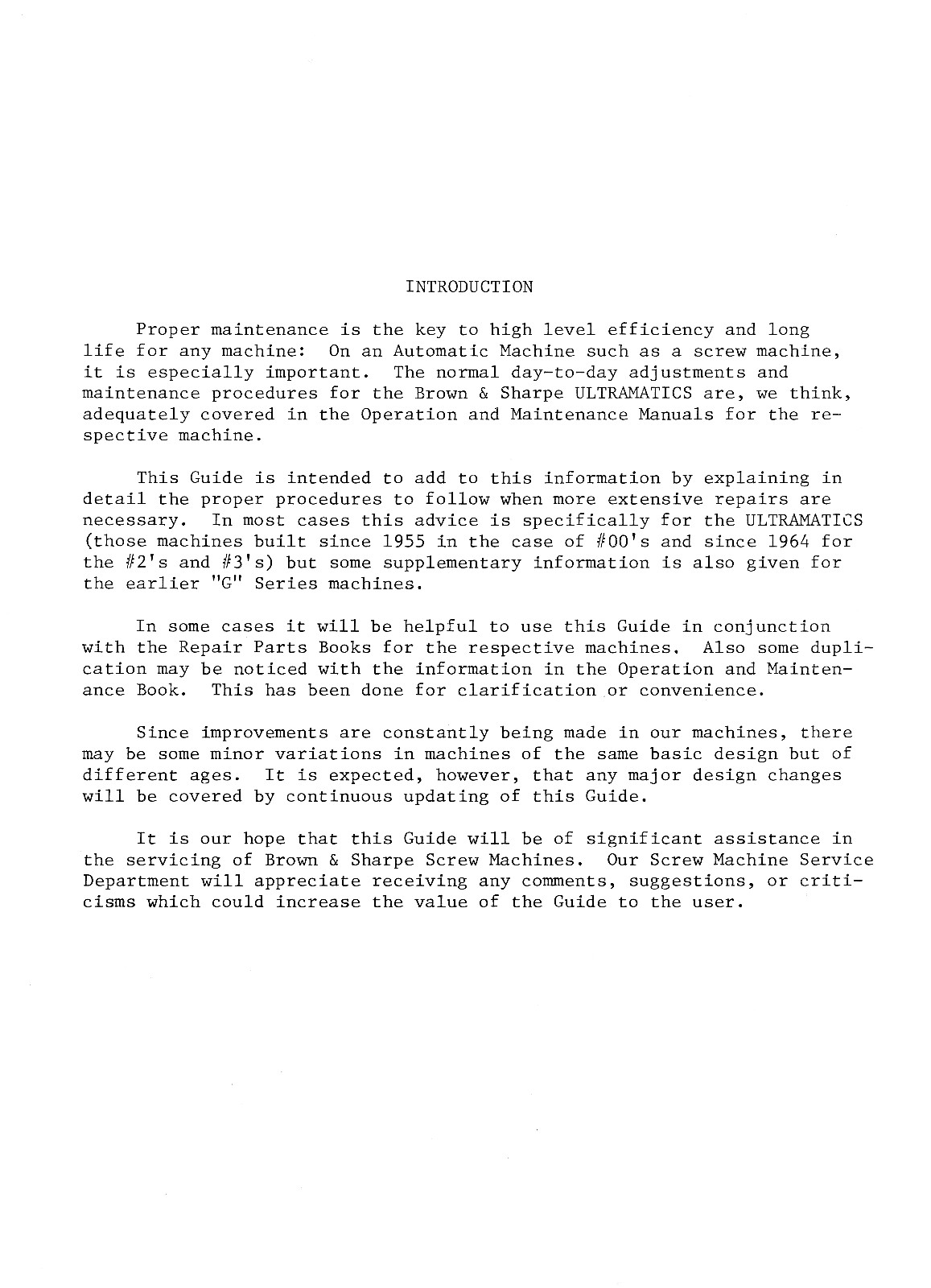

Manual Description: Number of Pages: 151+1 foldout This is a reproduction, not a photocopy, of an original Brown & Sharpe Screw Machine Troubleshooting Guide. This Guide is intended to add to the information in the owner’s manuals by explaining in detail the proper procedures to follow when more extensive repairs are necessary. In most cases this advice is specifically for the ULTRAMATIC Screw Machines (those machines built since 1955 in the case of #00’s and since 1964 for the #2’s and #3’s) but some supplementary information is also given for the earlier “G” Series screw machines. We have a Brown & Sharpe screw machine in our shop, and the information in the manual has been priceless. This is the textbook for these machines. Contents: Introduction Brown & Sharpe Pumps Used on Automatic Screw Machines…………………….F1 CAMAC (Old Design) Including Replacement of Sprag Clutch…………………..M Camshafts Hesitate, Slip or Fail to Drive……………………………….E1 Camshafts, Timing of…………………………………………………..Q Chip Wipers on #2 and #3 Turret Slide, Installation of……………………A1 Chuck Clutch Trip Lever, Setting………………………………………..L Chuck and Feed Driving Gear, and Chuck and Feed Clutches, Removal of………..J Clutch Body Keys, Clutch Lever Inserts in “G” Series Machines, Installation of……………………………………………………….Y Coolant Shut-off Solenoid Valve on #00, Installation of…………………..G1 Comparing #2 ULTRAMATICS to Earlier #2 Automatics, Questions and Answers…….W Electrical Guide………………………………………………………T Electrics……………………………………………………………D1 Friction Brake Motor on #00, Conversion from Dynabrake Driveshaft Motor to…..U Lubrication…………………………………………………………..A Mounting Studs on Stearns Brake of Driveshaft Motor, Replacement of………..CI Oils for Coolants (Water Soluble and Sulphur Base) on #00, #2 and #3, Use of…Z Oversize Clutch Lever Spindle Inserts, Instructions for Using………………X Rapid Pull-Out Attachment on #00, Use of…………………………………S Right Hand Bracket, Removal of………………………………………….H Right Hand Bracket, Mounting of…………………………………………I Speed Case, Removal of…………………………………………………B Speed Case Assembly…………………………………………………..II Spindle Assembly on Older Designs with Coil Sprocket Bearing Retainer Springs, Fitting Washers to…………………………………………………….N Spindle Bearings, Chart Showing Proper Assembly of………………………..0 Stock Push-back or Feeding Inaccuracies on #2 and #3……………………..HI Thread Chasing Attachment, Operate………………………………………V Torque Limiter……………………………………………………….B1 Turret Attachments, Instructions for Installing…………………………..R Turret Change Shaft Adjusting Gear and Turret Return Shaft on #00 Machines, Replacing………………………………………………..P Turret Locking Pin Bushings on ULTRAMATIC and Automatic Screw Machines, Replacement of………………………………………………………..F Turret on #00 and #2 Automatics, Installation of New………………………D Turret on #2 and #3 ULTRAMATICS, Removal and Replacement of………………..C Turret on “G” Screw Machines, Installation of…………………………….E Turret and Reversing Clutches, Replacement of…………………………….K Turret Slide Springs on Constant Stroke Turret Slides, Removal of…………..G Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
