BROWN & SHARPE No. 2L, 2LB Surface Grinder Owners Operator & Parts Manual 0089

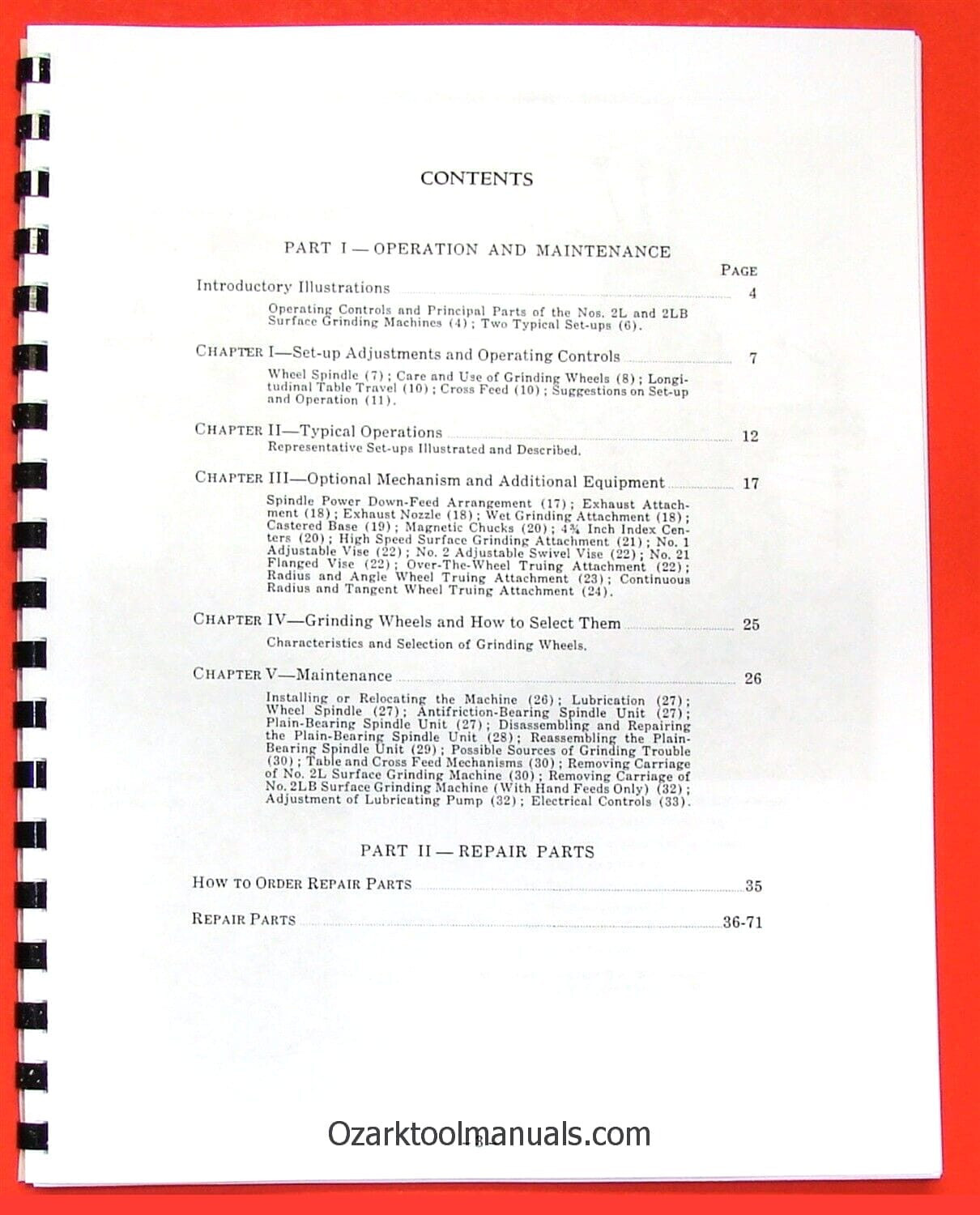

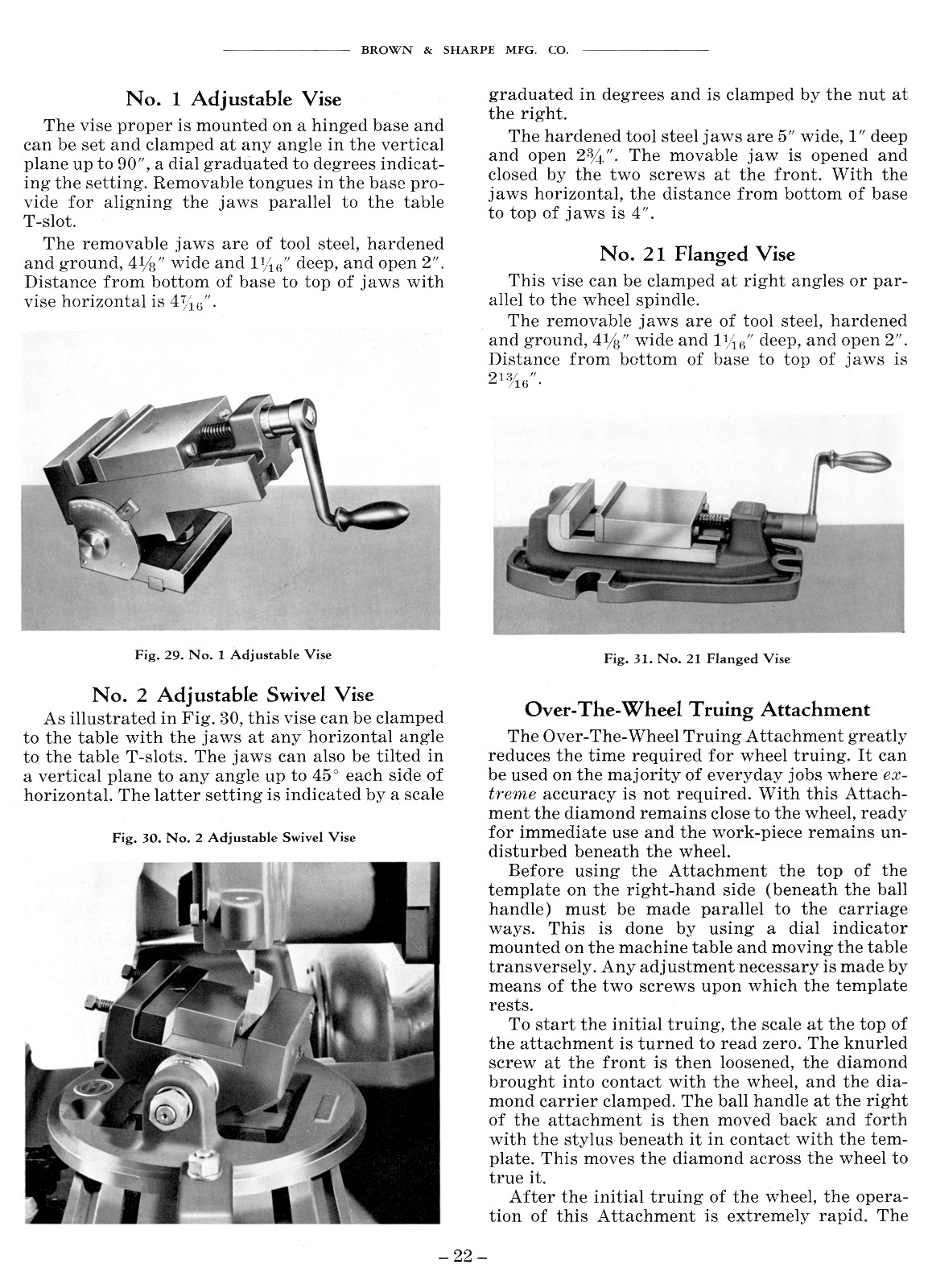

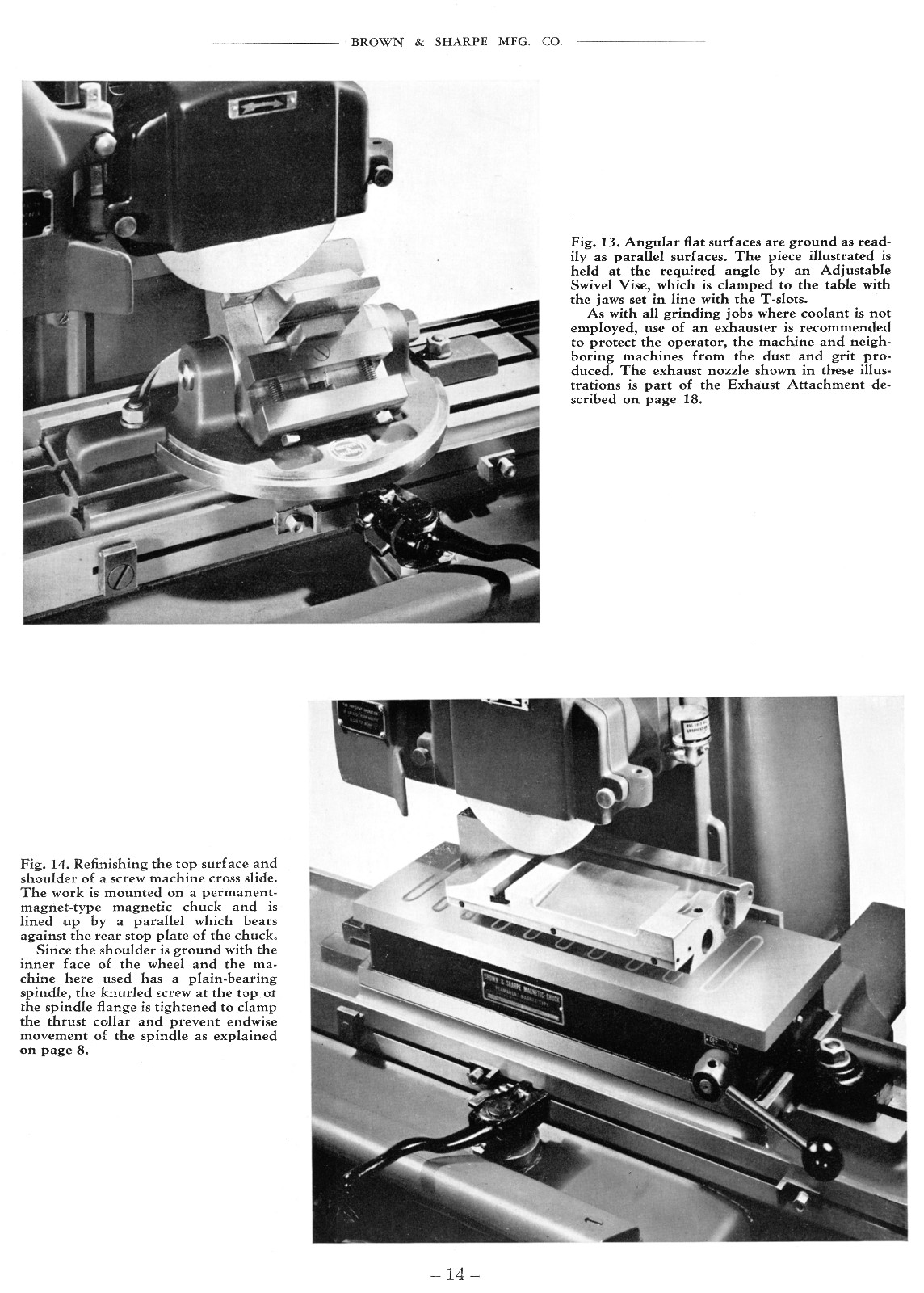

Manual Description:Number of Pages: 71 This is a reproduction of an original Brown & Sharpe No. 2L, 2LB Surface Grinder Operator’s and Parts Manual. For machines beginning with serial No. 523-2-1. This manual can still be helpful to Brown and Sharpe surface grinders that look similar to this machine and are close to this serial number. This manual contains information on setup, lubrication, maintenance, and controls as well as a complete parts list. The is one of the better manuals I’ve seen for a surface grinder. The manual contains lots of picture of set ups, and it shows the parts diagrams for all the accessories. I wish all manual were made as good as this one; it would make all of our lives easier. Contents:Introductory Illustrations………………………………………………………………4Operating Controls and Principal Parts of the Nos. 2L and 2LBSurface Grinding Machines (4); Two Typical Set-ups (6). Chapter ISet-up Adjustments and Operating Controls…………………7Wheel Spindle (7) ; Care and Use of Grinding Wheels (8);Longitudinal Table Travel (10) ; Cross Feed (10);Suggestions on Set-up and Operation (11). Chapter IITypical Operations……………………………………………………….12Representative Set-ups Illustrated and Described. Chapter IIIOptional Mechanism and Additional Equipment…………….17Spindle Power Down-Feed Arrangement (17) ;Exhaust Attachment (18); Exhaust Nozzle (18);Wet Grinding Attachment (18); Castered Base (19);Magnetic Chucks (20) ; 4%25 Inch Index Centers (20) ;High Speed Surface Grinding Attachment (21) ;No. 1 Adjustable Vise (22); No. 2 Adjustable Swivel Vise (22);No. 21 Flanged Vise (22); Over-The-Wheel Truing Attachment (22);Radius and Angle Wheel Truing Attachment (23) ;Continuous Radius and Tangent Wheel Truing Attachment (24). Chapter IVGrinding Wheels and How to Select Them……………………25Characteristics and Selection of Grinding Wheels. Chapter VMaintenance……………………………………………………………….26Installing or Relocating the Machine (26) ; Lubrication (27) ;Wheel Spindle (27); Antifriction-Bearing Spindle Unit (27) ;Plain-Bearing Spindle Unit (27) ; Disassembling and Repairingthe Plain-Bearing Spindle Unit (28) ; Reassembling the Plain-BearingSpindle Unit (29) ; Possible Sources of Grinding Trouble (30) ;Table and Cross Feed Mechanisms (30) ; Removing Carriageof No. 2L Surface Grinding Machine (30) ; Removing Carriageof No. 2LB Surface Grinding Machine (With Hand Feeds Only) (32) ;Adjustment of Lubricating Pump (32) ; Electrical Controls (33). PART II REPAIR PARTS How to Order Repair…………………………………………………………………………35Repair Parts……………………………………………………………………………………..36-71 Overview:I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
