Bridgeport Vertical Machining Center DX32 CNC Operator Manual #2105

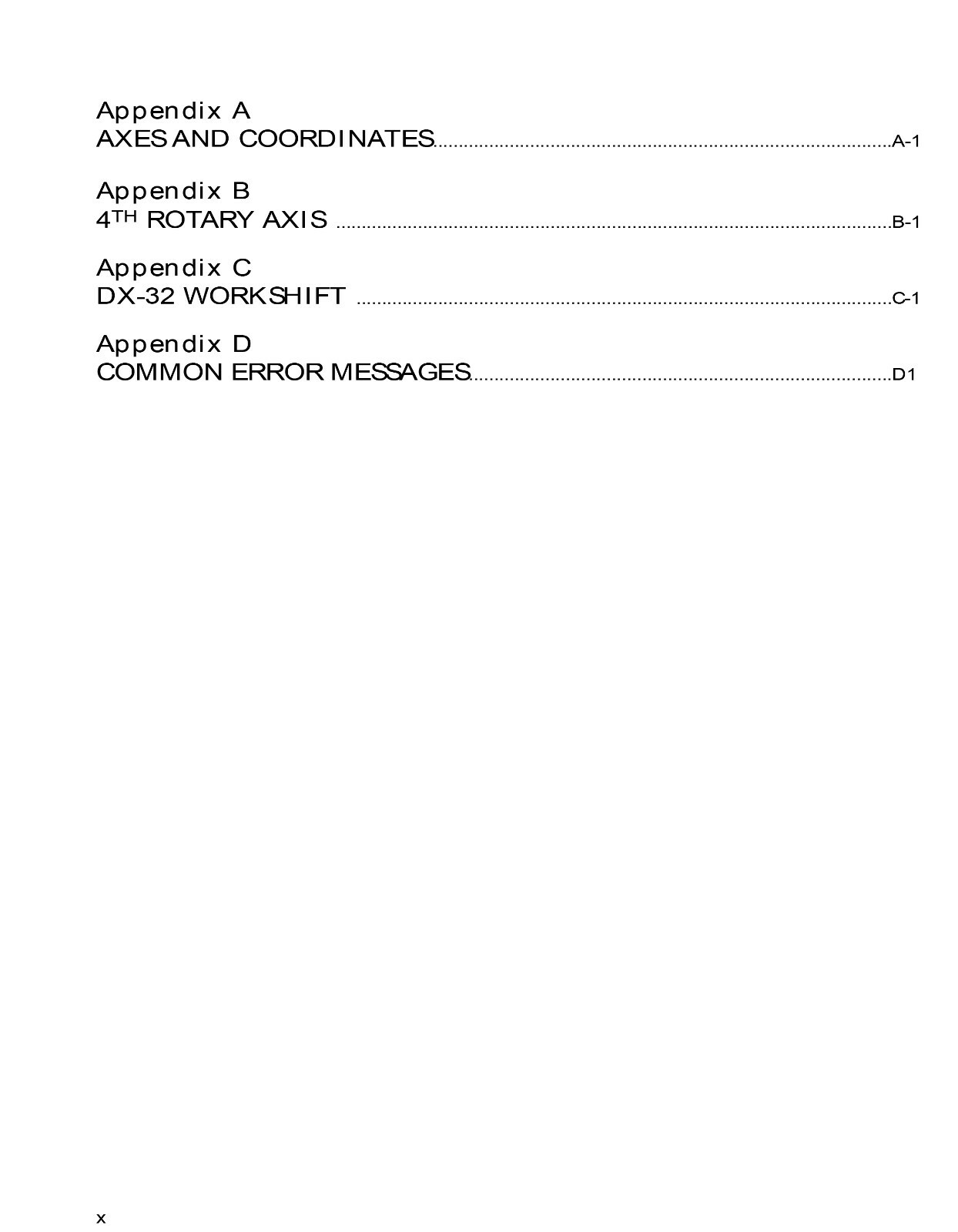

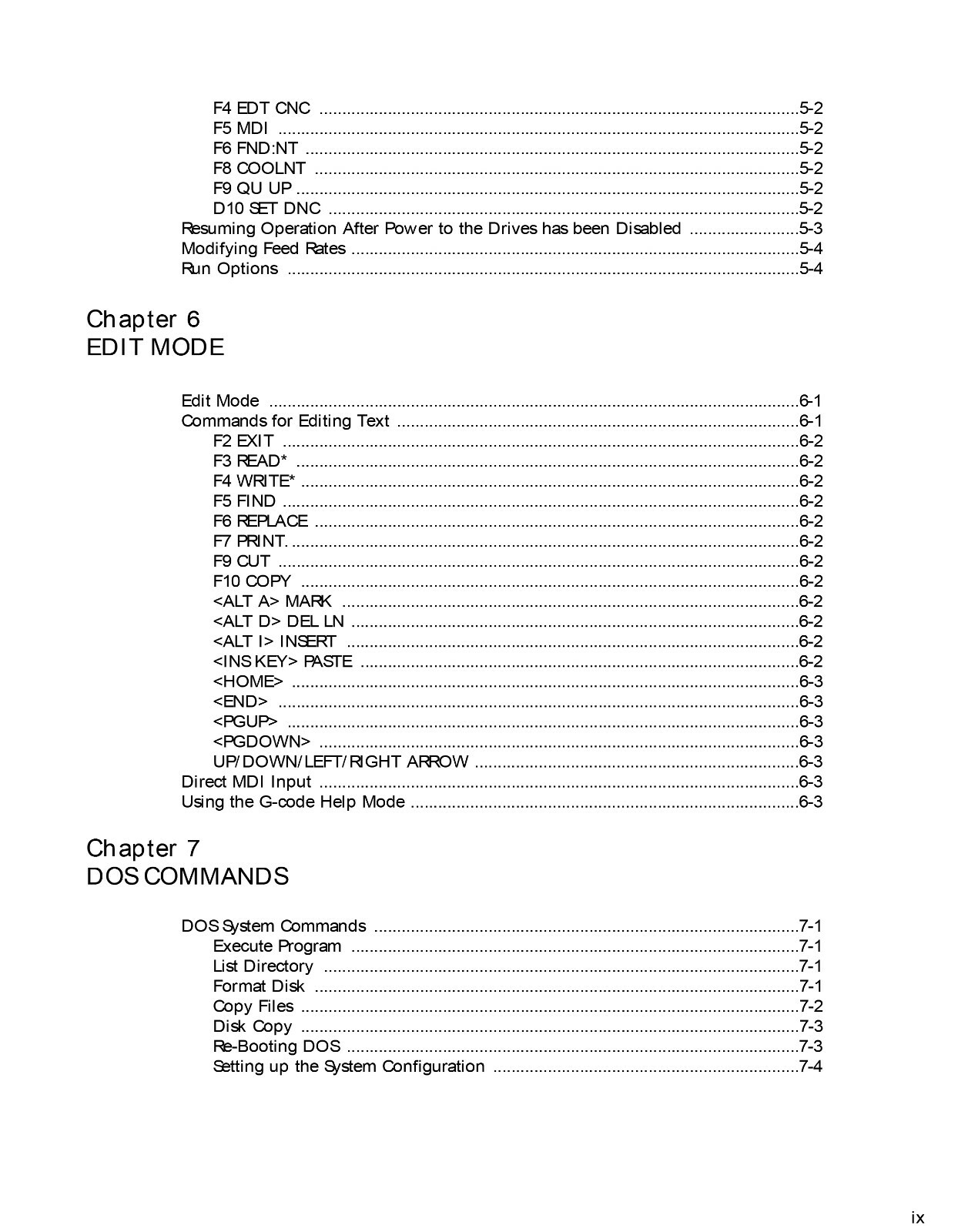

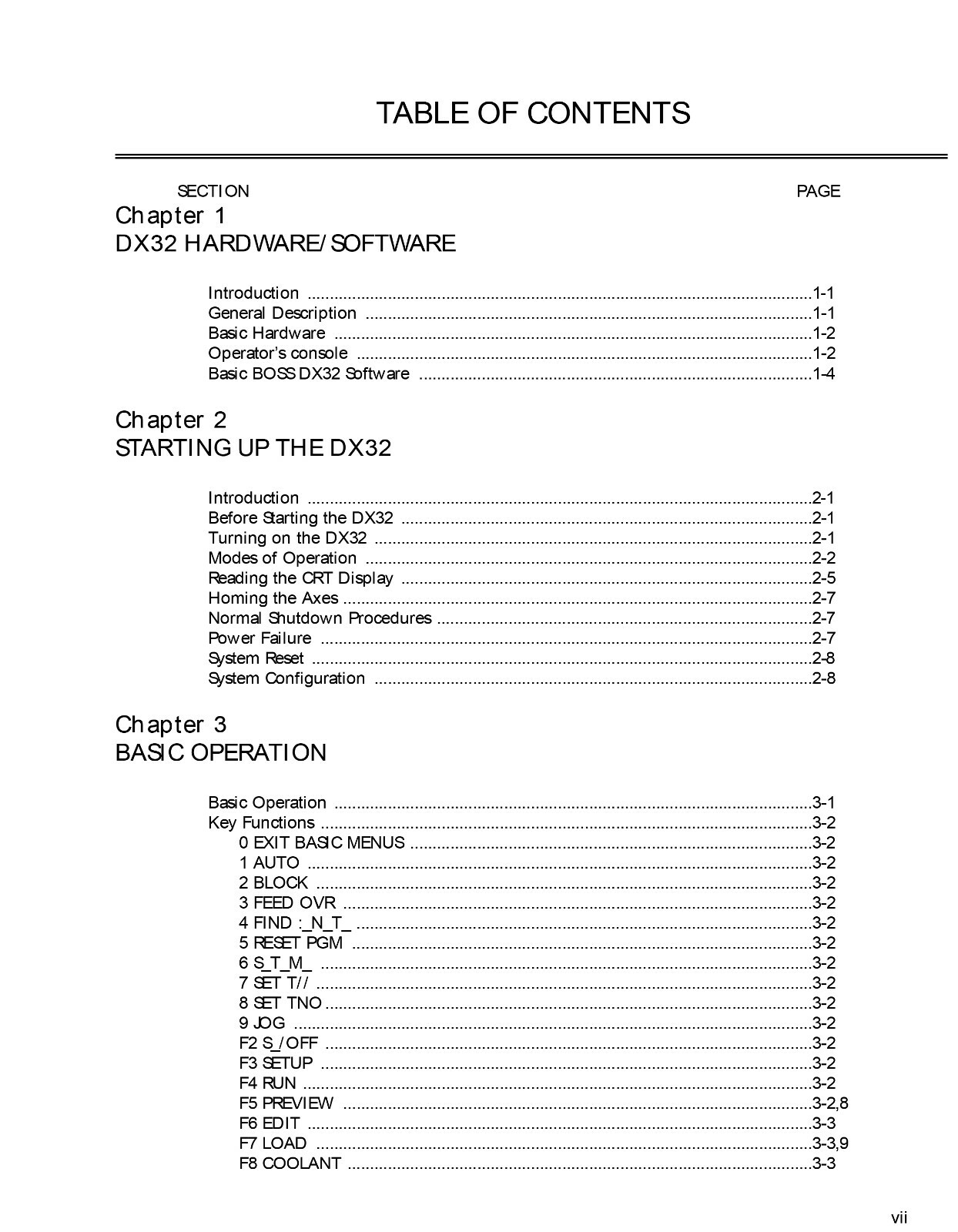

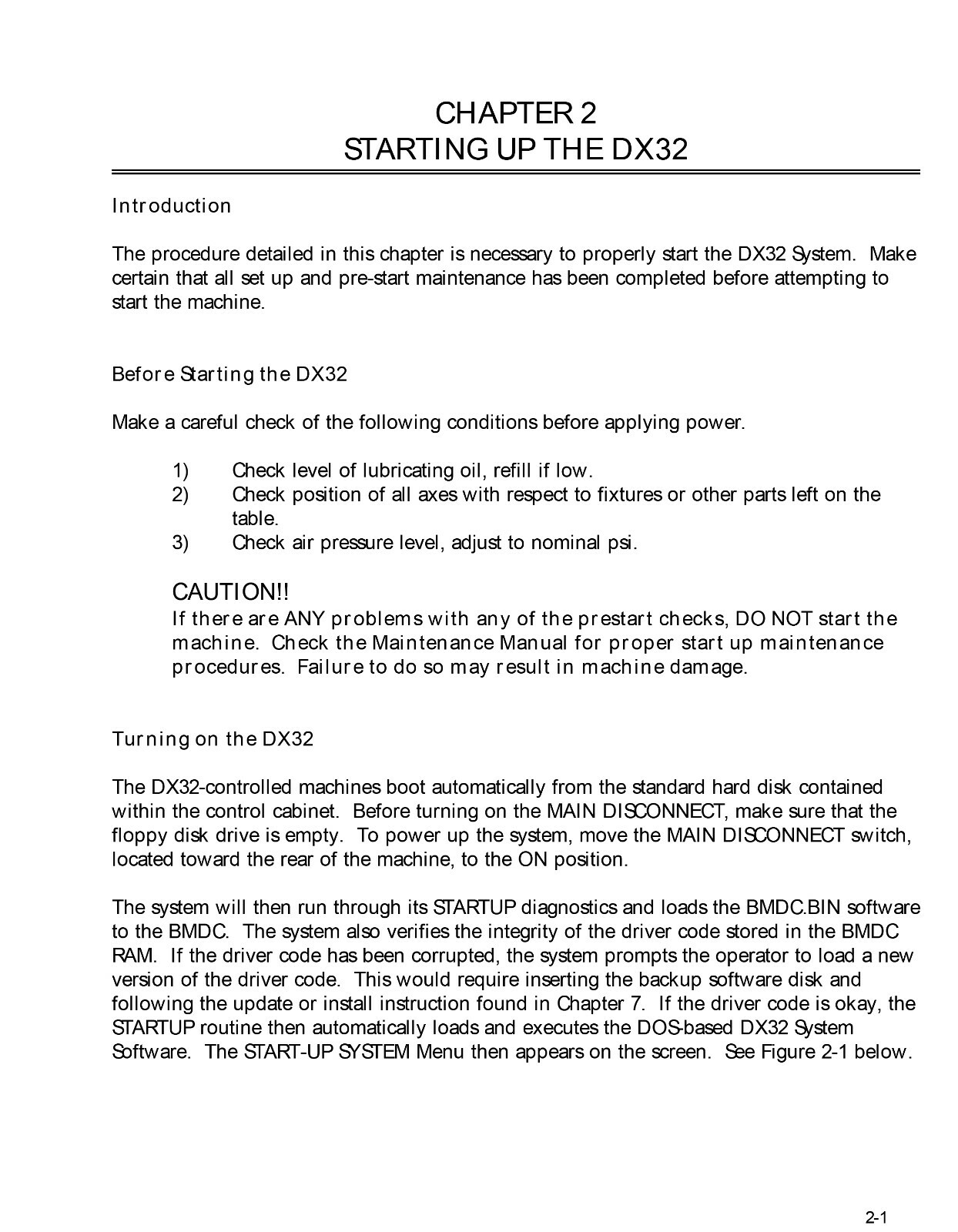

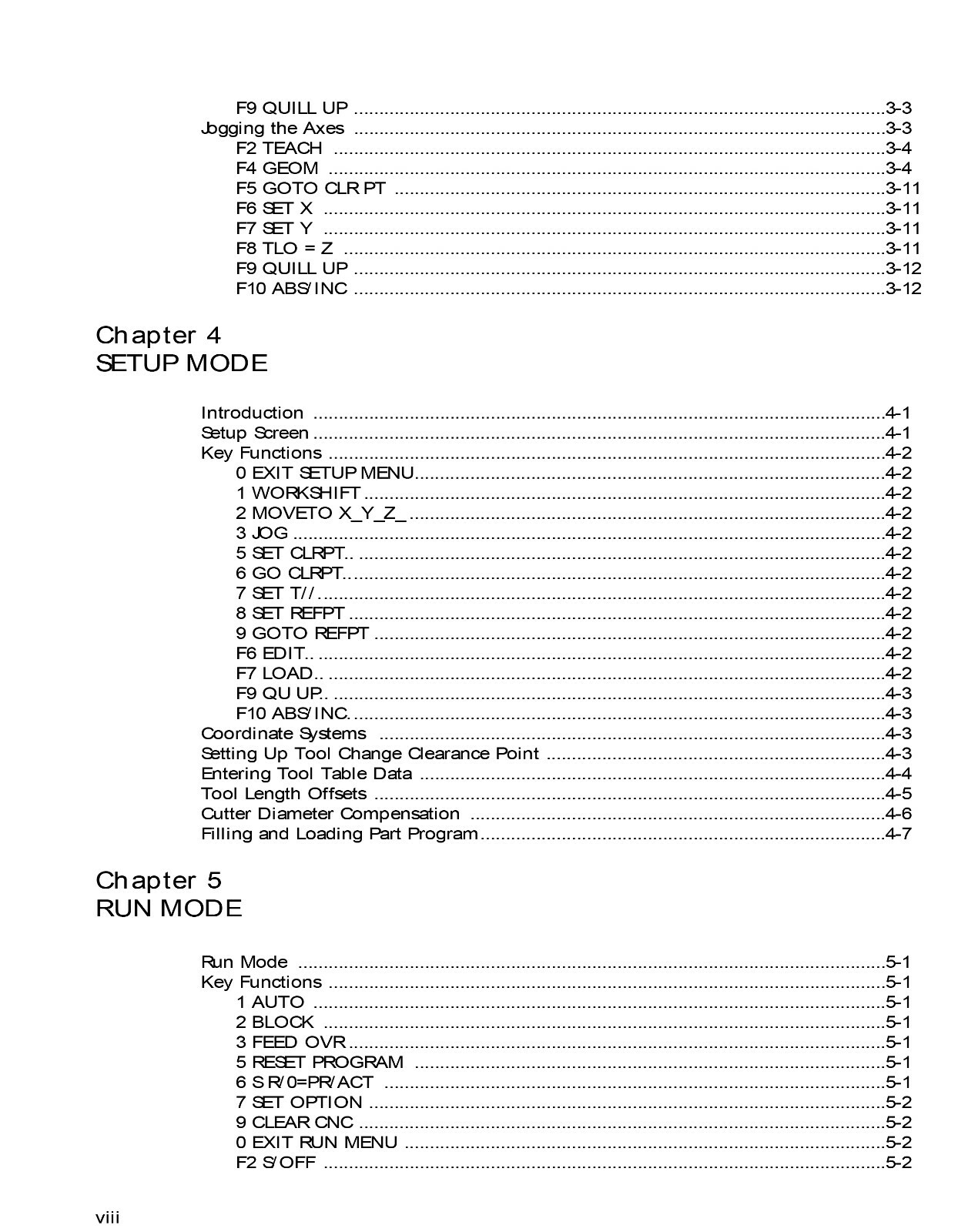

Bridgeport Vertical Machining Center DX32 CNC Control Type of Manual: Operator/Programming Manual For Models: DX32 Description: This manual covers the Bridgeport DX32 CNC Control for the Vertical Machining Center. The DX32 control integrates a PC computer and a BOSS (Bridgeport Operating System Software) CNC control. The PC DOS-based computer combines full feature capability with ease of use by incorporating VGA color graphics and multiple windows that prompt the user through all control functions. The various machine functions are selected with the numeric keypad and function keys on the keyboard. The keys required to perform the necessary operator functions are linked to a color coded, on screen display. The manual has about 109 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections on:DX32 Hardware/softwareStarting Up the DX32Basic OperationSetup ModeRun ModeEdit ModeDos CommandsAxes and Coordinates4th Rotary AxisCommon Error Messages Number of Pages: Approx. 109 Publication Date: Oct 1997 Publication No.: 1104-2832 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
