American Tool Works Lathes 14″ to 25″ Basic Instruction Manual #1794

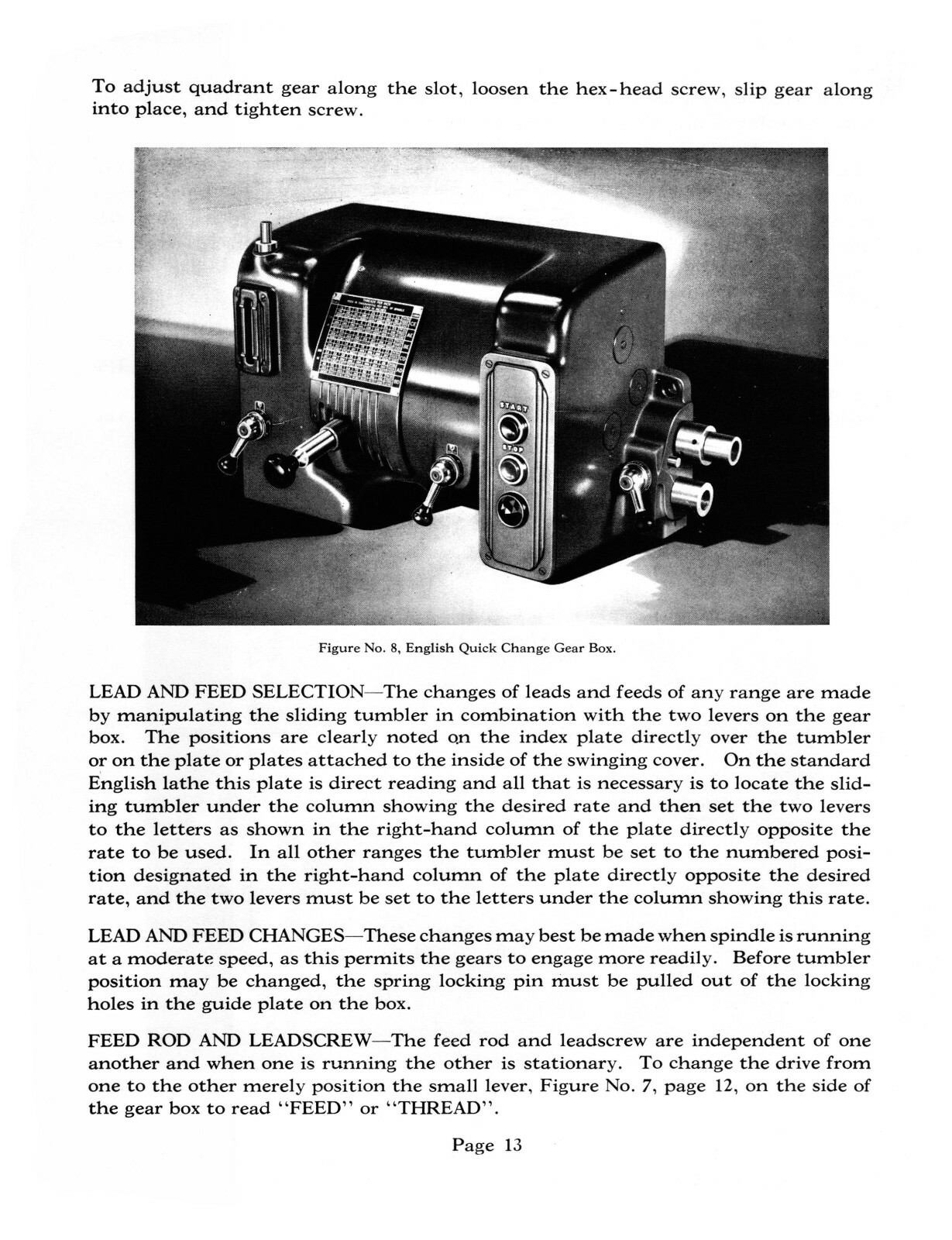

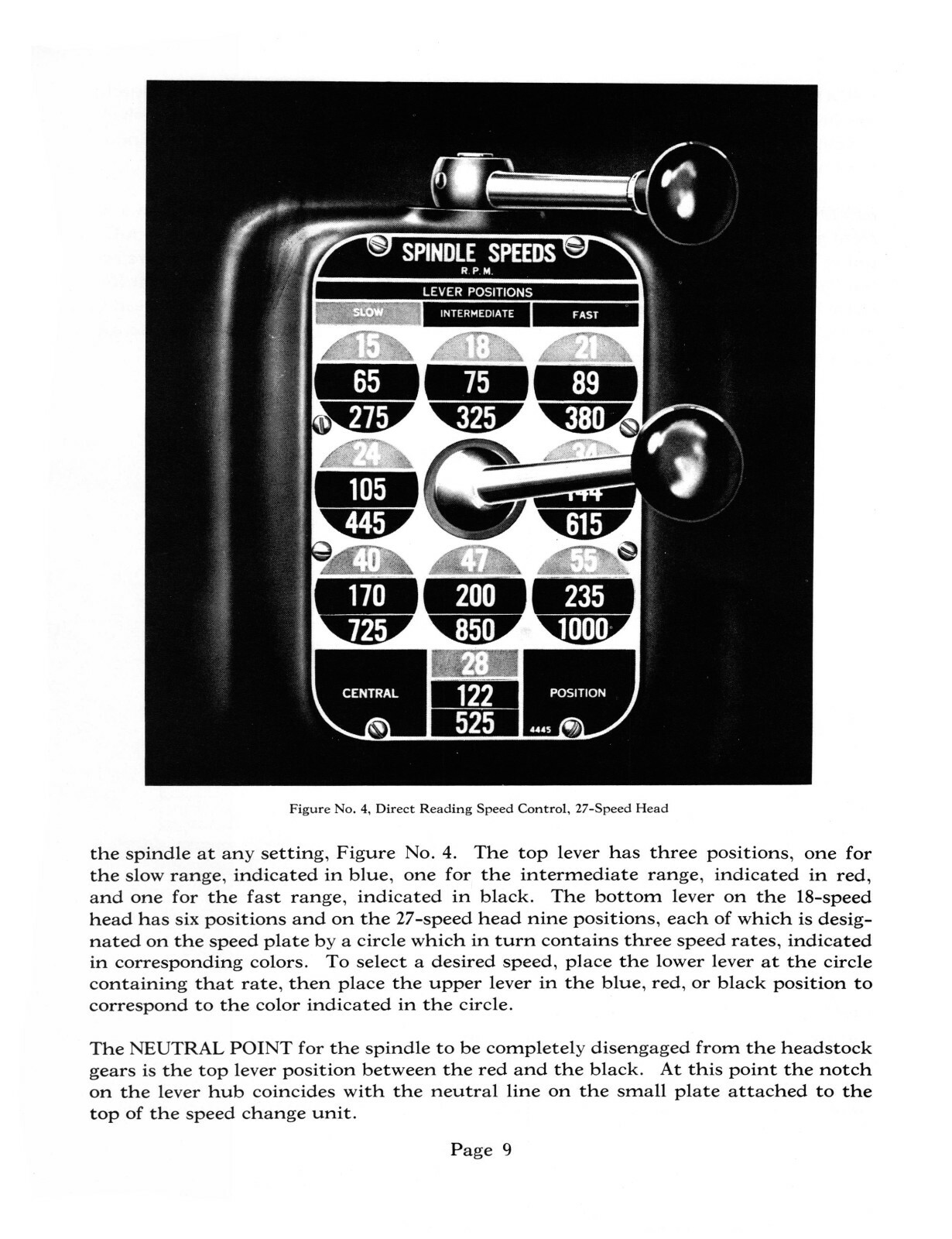

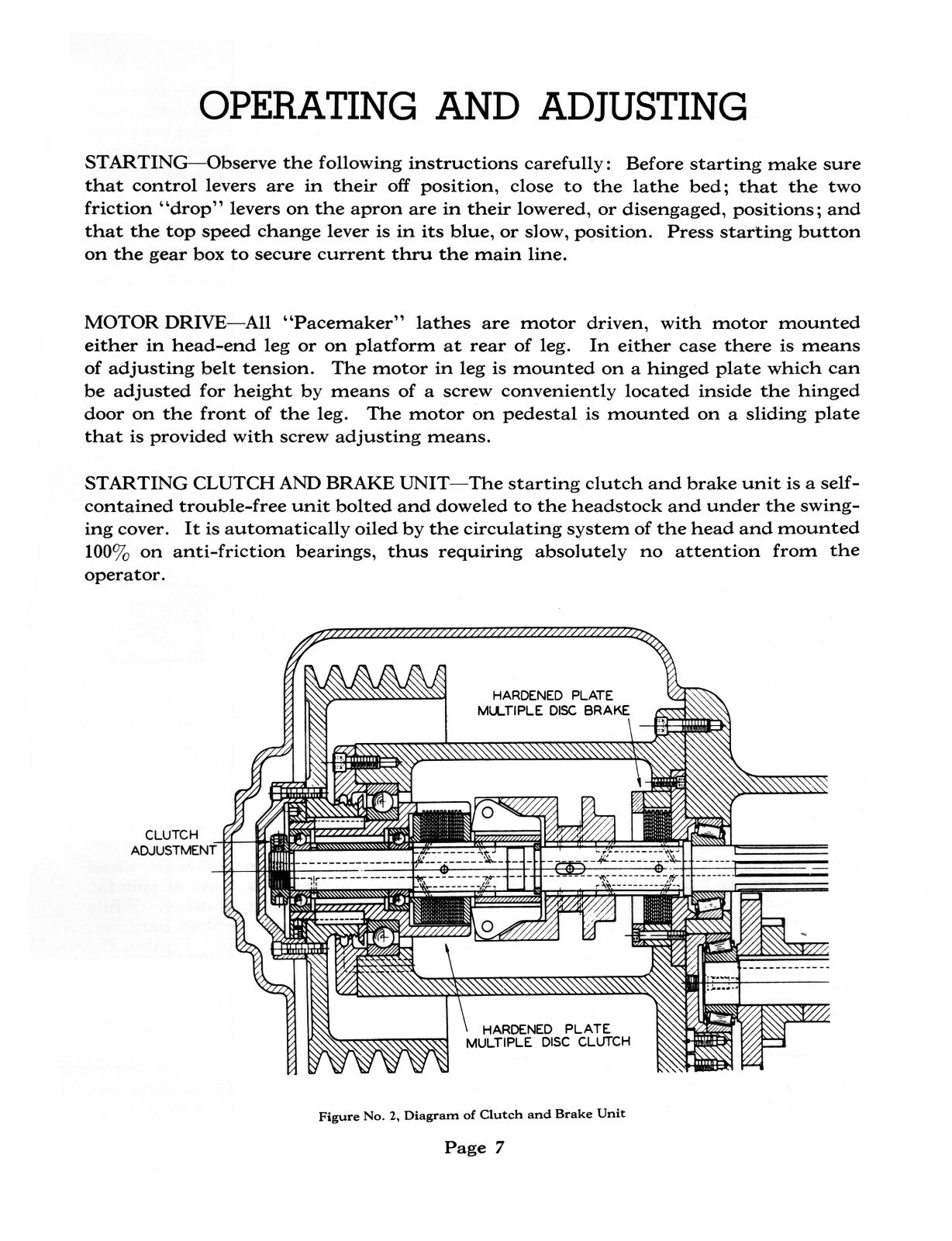

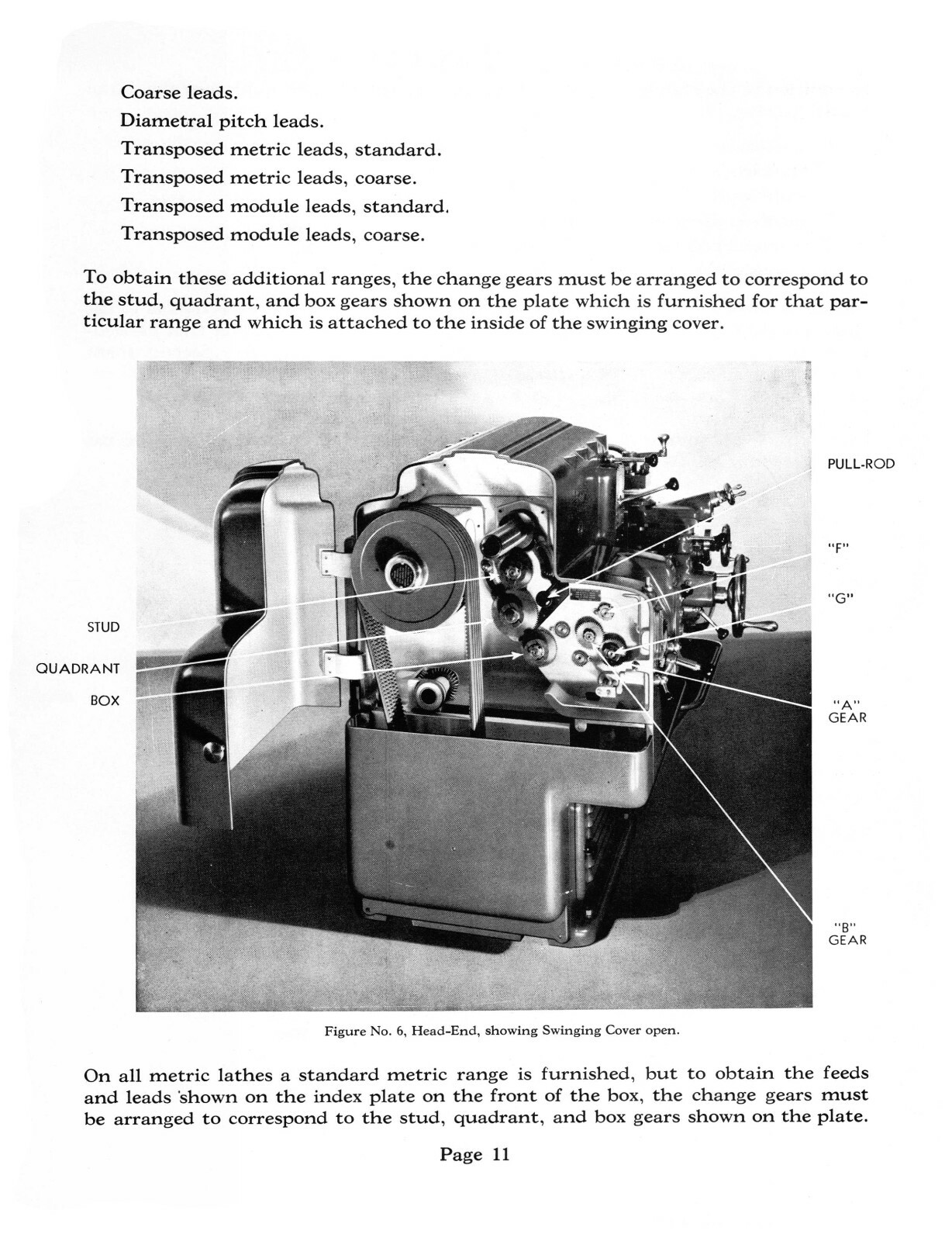

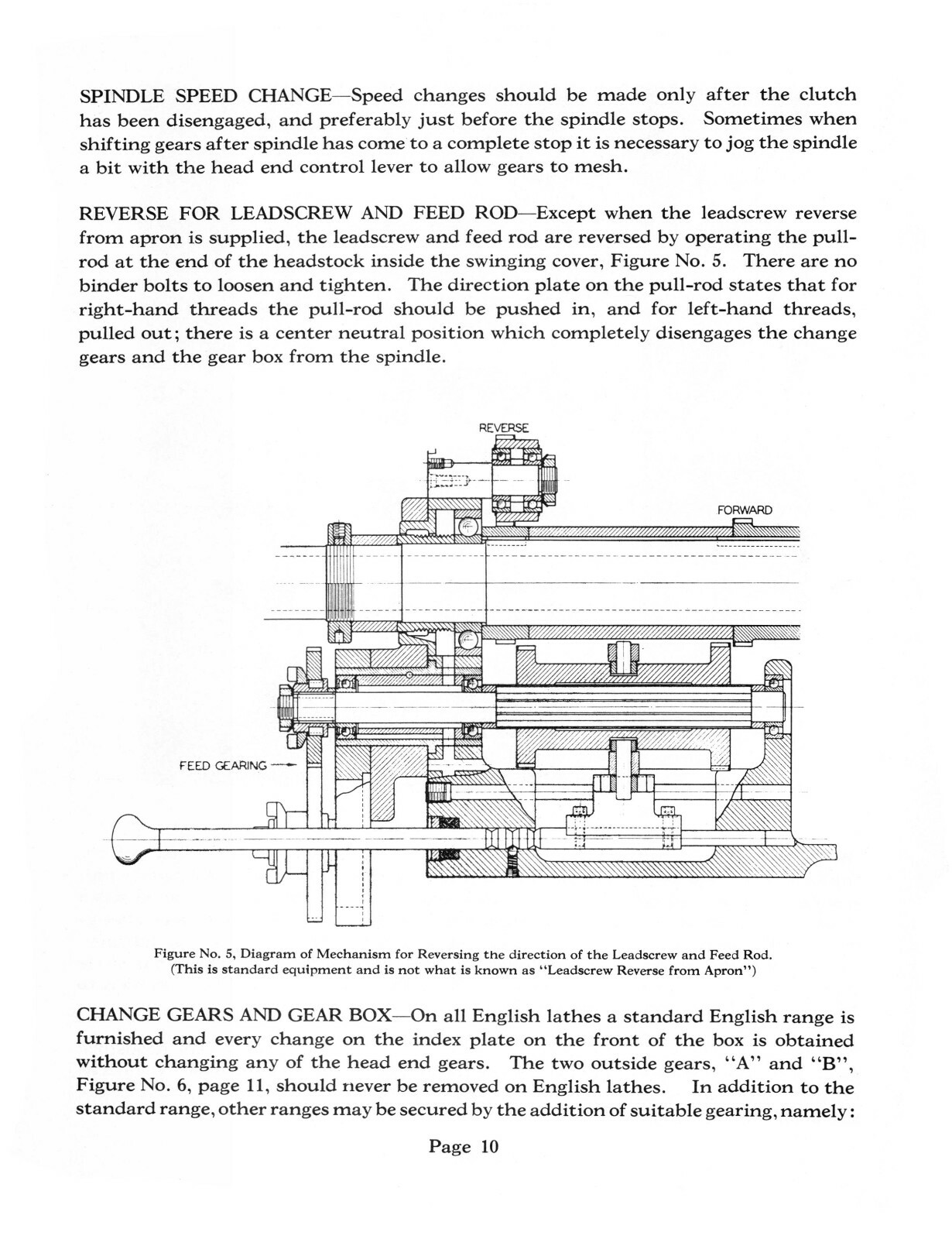

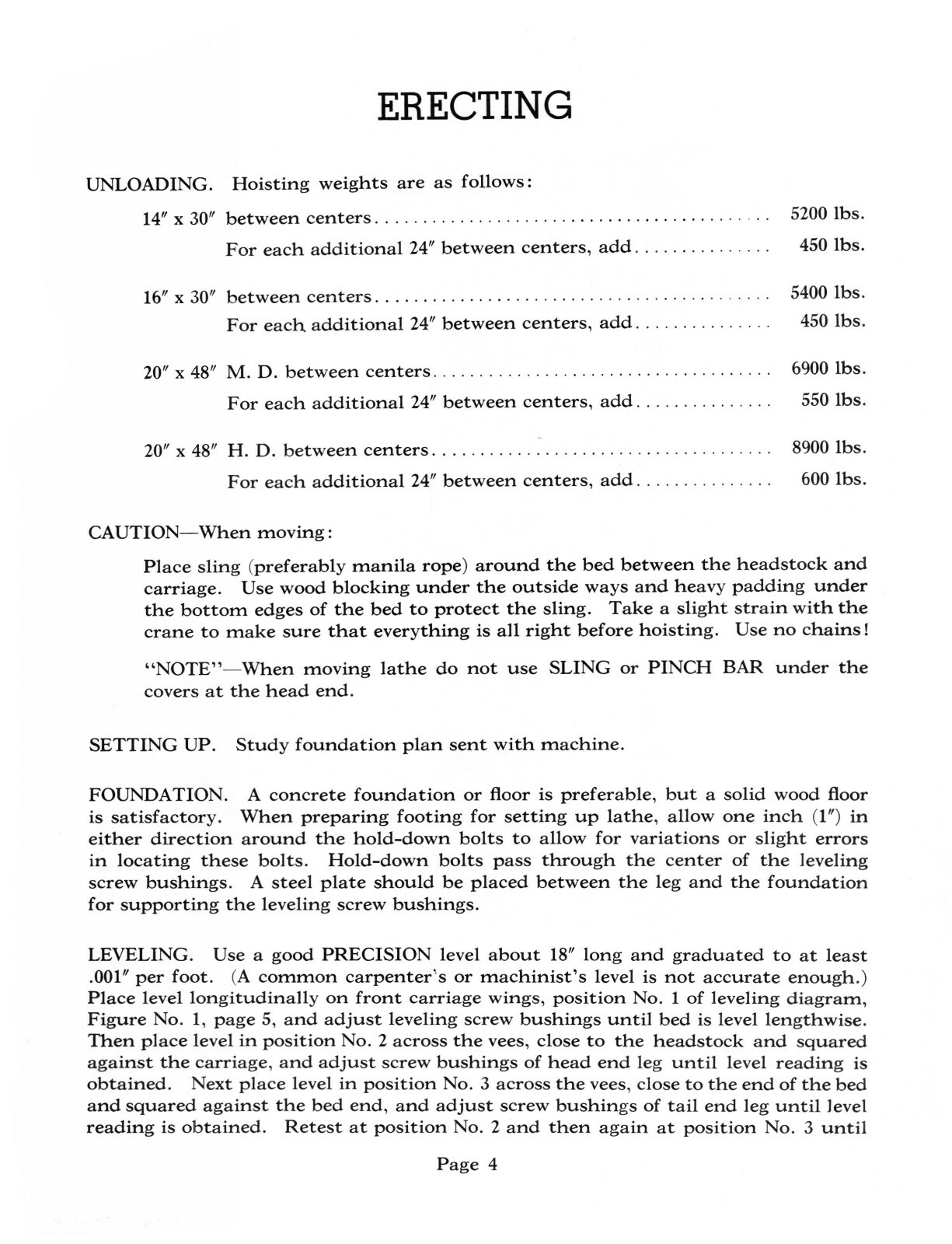

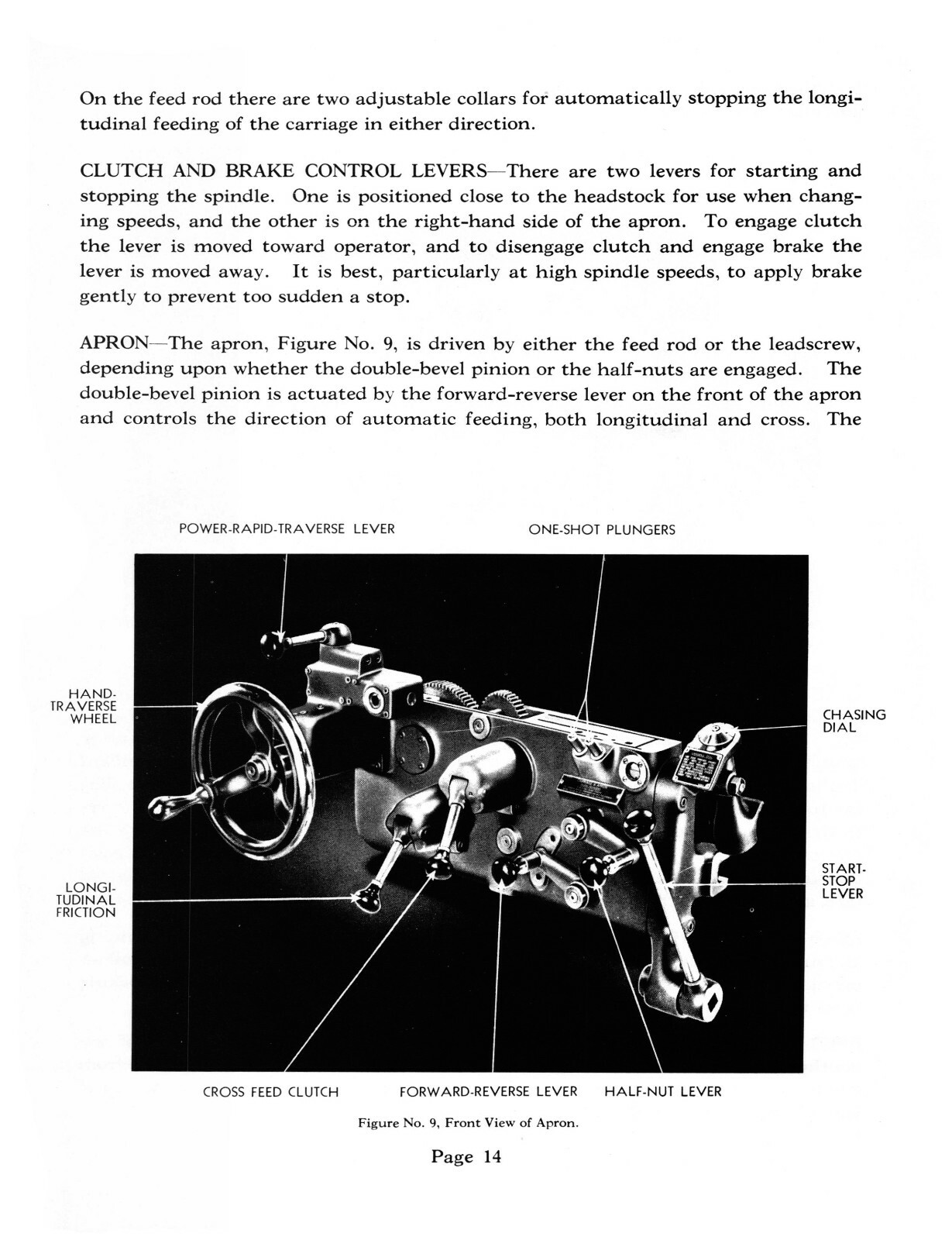

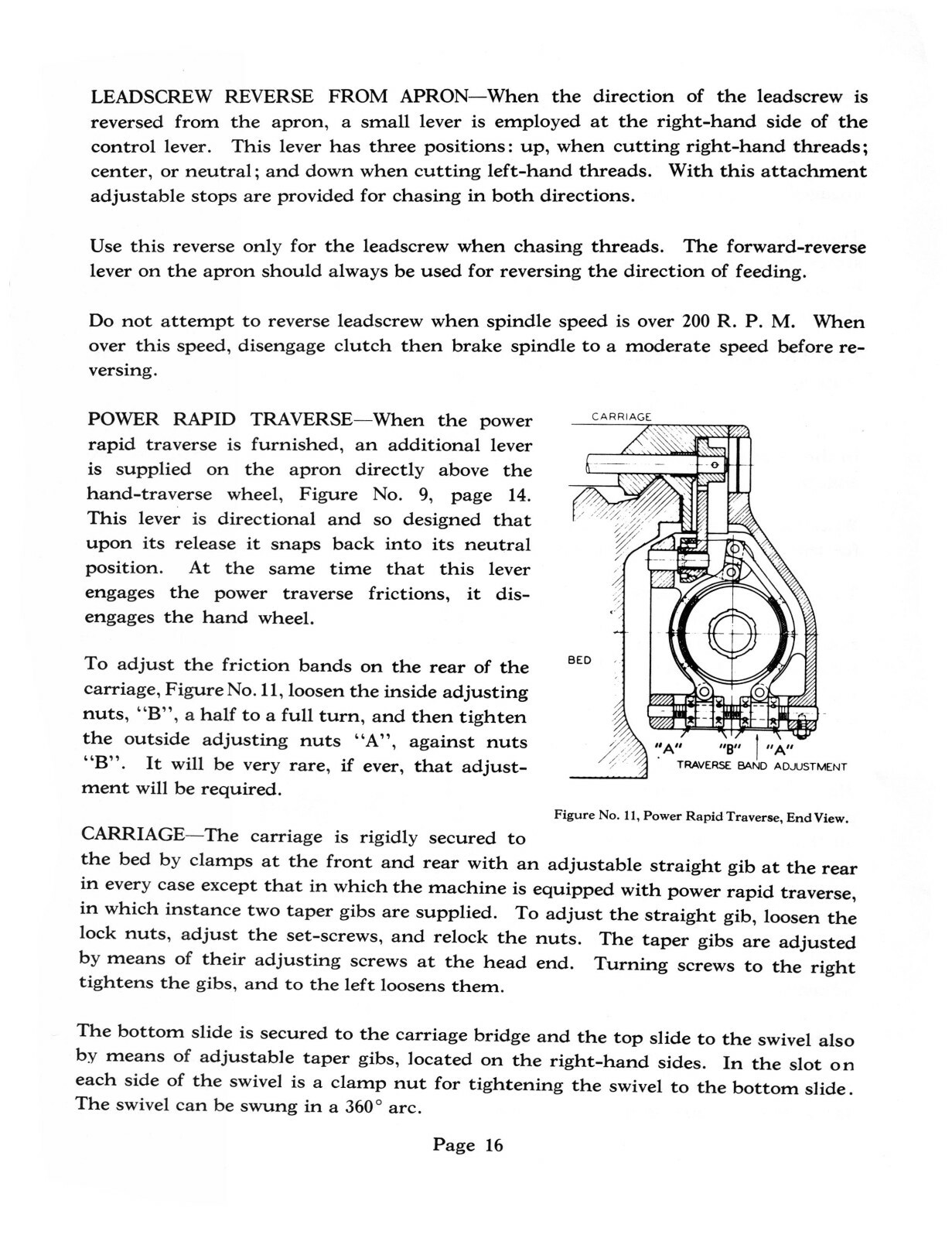

American Tool Lathes 14″ to 25″ Type of Manual: Instruction/Operation For Models: 14″-16″, 20″ Medium Duty, 20″ Heavy Duty, 22″ Heavy Duty, 25″ Style “F” Description: This manual covers the Operating Basics of the American Tool Lathes listed above. It covers Erecting, Lubrication, Operating, & Adjusting. It has about 20 Pages. To inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections onErectionLubricationOperating AdjustingSpindle Speed SelectionSpindle Bearing AdjustmentSpindle Speed ChangeChange Gears and Gear BoxLead and Feed SelectionPower Rapid TraverseCarriageTaper Attachment Number of Pages: Approx. 20 Publication Date: N/A Publication No.: Bulletin #17 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
