American Tool Hole Wizard 9″ &11″ Radial Drill 12 Speed Instruction Manual #1797

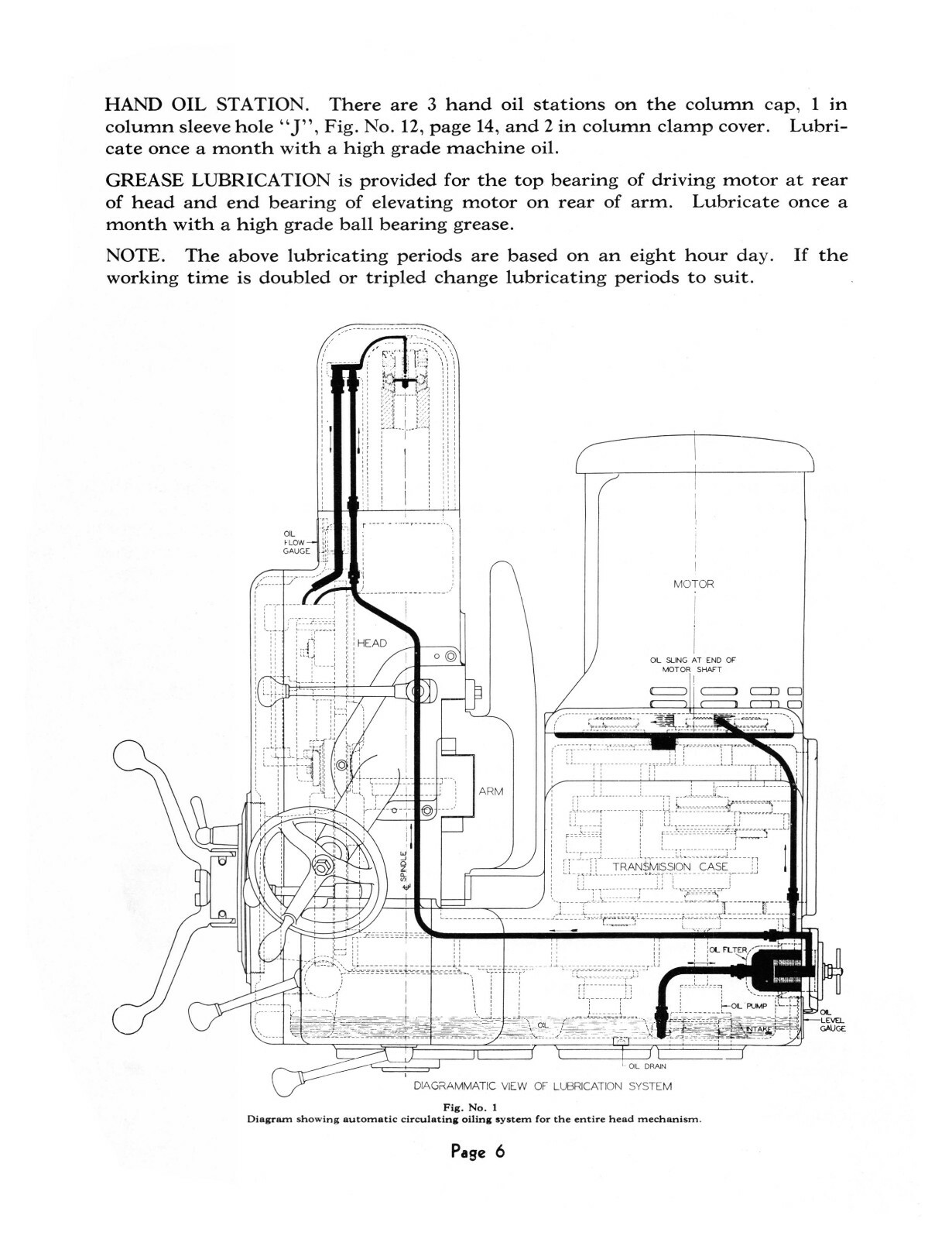

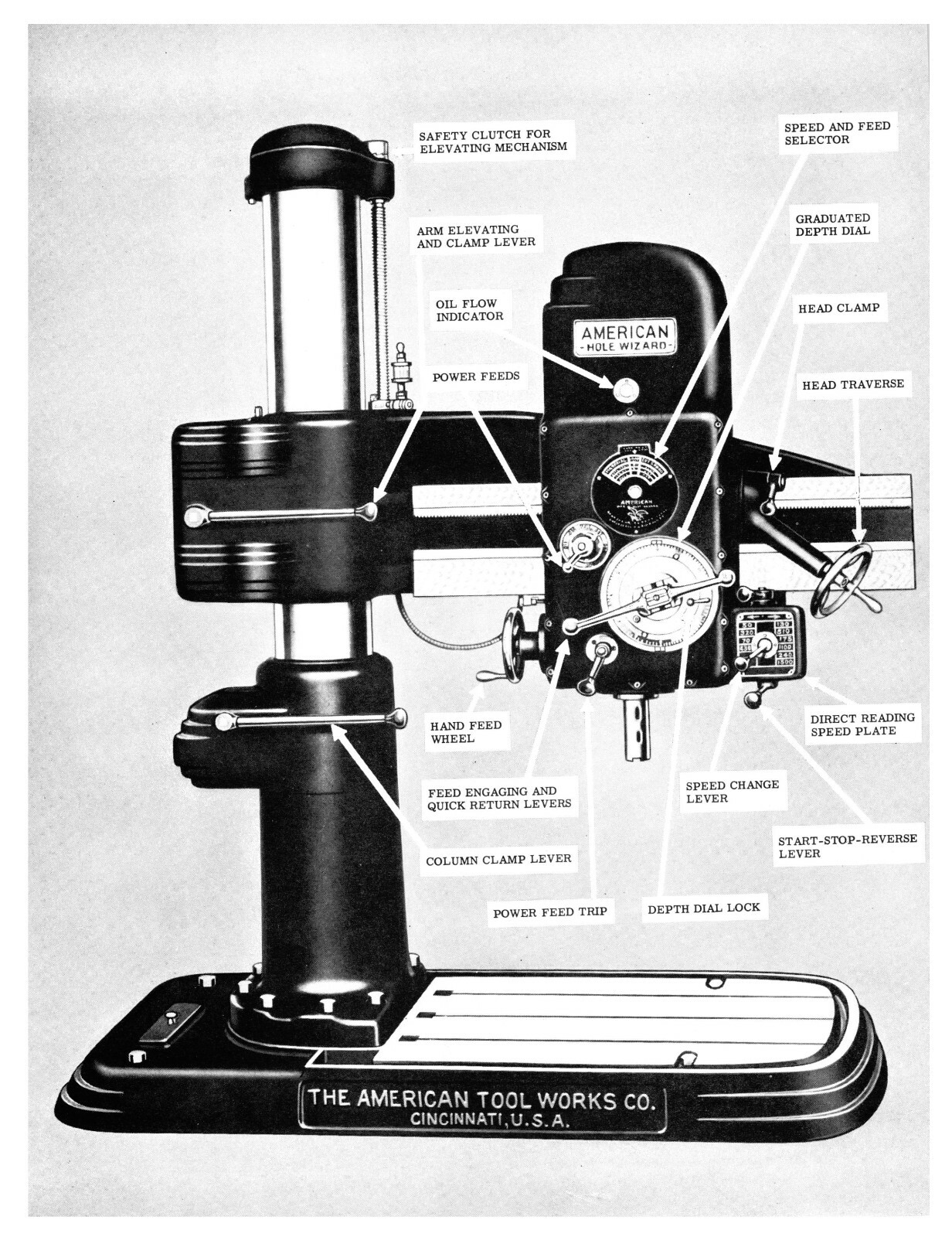

American Tool Hole Wizard 9″ & 11″ Radial Drill Type of Manual: Instruction For Models: 9″ & 11″ Column, 12 Speeds Description: This manual covers the American Tool Works “Hole Wizard” Radial Drill, 9″ & 11″. It covers Installation, Speed Range Data, Adjustments, Operations, Wiring Diagram, and some Maintenance. It has about 20 pages. To view the Table of Contents, to inspect the quality of the manual, and to view select pages, please click on the gallery images above. Includes sections onErectingLubricationSelection of Spindle SpeedsSpeed Range Data ChartFeed SelectionFeed FrictionSpindle & Spindle SleeveArm Girdle AdjustmentReplacing Elevating NutMotor DriveCollector Ring AssemblyCutting Lubricant SystemElectrical Wiring Diagram Number of Pages: Approx. 20 Publication Date: N/A Publication No.: Bulletin 329 Added Notes: Due to others making copies of these for resale, I have added a light watermark to select pages to discourage this practice. About this manual: This is a high quality reproduction manual which has been scanned with a high resolution scanner. Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had. It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer. The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Ships USPS First Class Free unless otherwise stated or Upgrade to Priority Mail for faster delivery. Sales Tax Charged for Kansas Sales See my for more manuals.
