12″ x 40″ Metal Lathe Instructions Parts Manual-Jet,Enco,Grizzly,MSC,Asian 0771

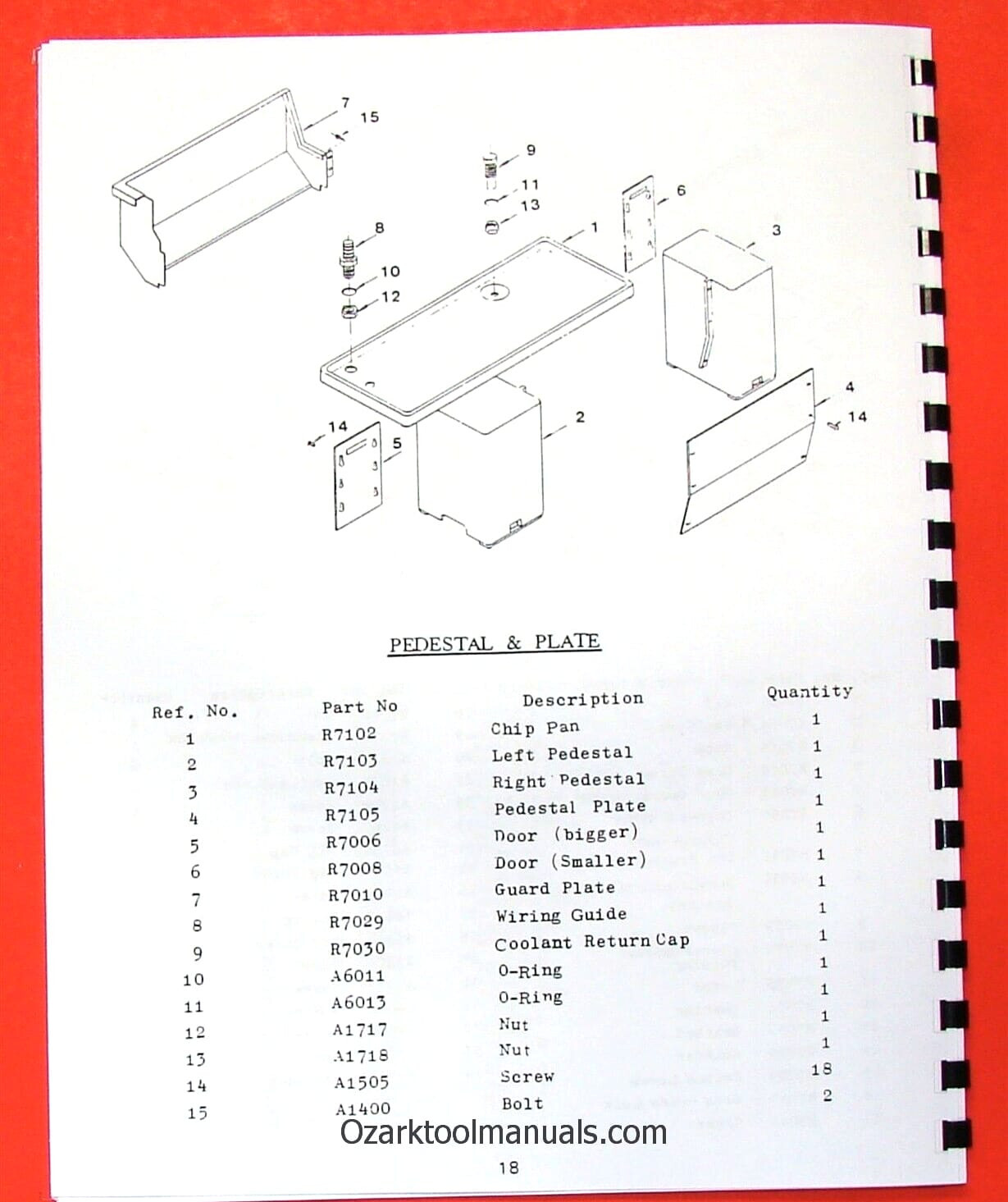

Manual Description:Number of Pages: 34 This is a reproduction of an original Asian Metal Lathe 12″x 40″ Instructions and Parts Manual. This machine is manufactured in Asia and has been sold under many different names including: JET, Grizzly, Enco, MSC, etc… This manual contains information on setup, lubrication, maintenance, and controls as well as a complete parts list and exploded views and adjustments. Picture: Contents: Specification……………………………..1 Legend……………………………………2 General Dimensions…………………………3 Installation………………………………4 Leveling………………………………….5 Electrical………………………………..6 Lubrication……………………………….7 Chuck Mounting…………………………….8 Operating Instructions……………………..9 Headstock………………………………..10 Gear Box…………………………………11 Feed Engagement…………………………..12 Treading Dial…………………………….12 Tailstock………………………………..12 Taper Attachment………………………….13 Metric Threads……………………………14 PARTS LISTS & DIAGRAMS Headstock……………………………..15-19 Gear Box………………………………20-25 Apron…………………………………26-27 Carriage…………………………………28 Compound Slide……………………………29 Tailstock………………………………..30 Bed & Shafts…………………………..31-34 Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. Visit our eBay Store!We have over 1,100 manuals available. From our shop to yours. We get this. But you get this! Why settle for anything less?We can’t make pictures a lot better than the original, but we can fix everything else. Shipping: We ship every M-T-W-T-F except US holidays. All of our manuals are shipped with Delivery Confirmation. We stamp “Do Not Bend” on them to ensure that your manual arrives quickly in good condition. Any package that weighs more than 15.9 oz cannot be shipped First Class, and will be shipped Media Mail. Priority and Express mail options are available to purchase. Since we offer free shipping, we cannot reship manuals for free, due to inaccurate or insufficient addresses. Reshipping Fees for inaccurate or insufficient addresses: $5.00 for the first manual and $2.50 for each additional manual. Service: We have been providing this service to fellow craftsman and machinist for over 20 years. We treat everyone as we would like to be treated. We try to take care of all our customers. We do more than sell manuals, we have a complete woodworking and machine shop. We operate all kinds of machinery everyday.
