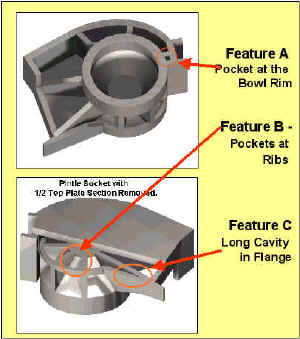

| The
drawing to the right shows the pintel socket with three features highlighted for design
review. Which features need to be redesigned
to reduce the possibility of mold/core breakage?
Feature A --
Pocket between Drive Bracket Flange and the Bowl Rim
Feature B --
Pockets between Supporting Ribs and Bowl.
Feature C --
Long Cavity in Extended Flange
|
