- The pintle socket is a casting with extensive ribbing,
pockets, and functional flanges.

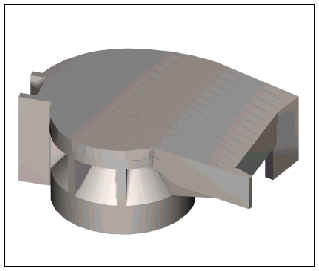

- The drawings show two different views of the pintle socket to
show the overall size, the complexity, and the multiple features of the socket.
- The casting design engineer works with the OEM engineer to
optimize the design for both performance and castability.
|
