An Example in Aluminum Casting   The Corvette Brake Pedal

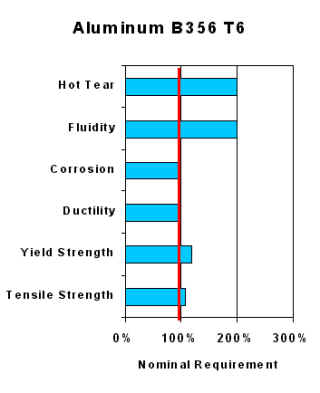

Aluminum B356 T6

The B356 T6 aluminum alloy
  • The aluminum B356 alloy with a T6 heat treatment has moderate strength and good ductility that can meet the mechanical requirements of the brake pedal.
  • The alloy has significantly better corrosion resistance than the 206 alloy because of the lower copper content.
  • The 356 alloy has good fluidity and resists "hot tearing."  This will ensure high production yield and reduce the need for extensive inspection.
  • The alloy has enough fluidity to fill the long thin geometry of the mold. But it is susceptible to “hot tearing” which would reduce production yield.

The B356 T6 alloy is the best choice.
Go on to the section on "Design for Castability"

 8B
