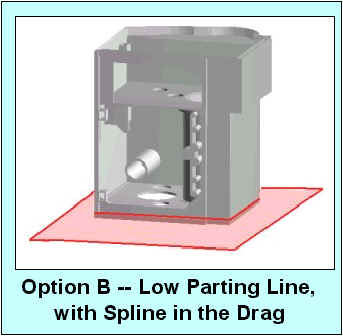

In Option B, the spline section is oriented
down in the drag (the lower mold cavity). This orientation minimizes the risk of flaw
segregation in the spline feature.
The parting line is
low in the mold cavity. This will give smooth nonturbulent metal flow into the mold
cavity and will minimize bubbles and oxide particulates.
For these
reasons, Option B is the best mold design. |
